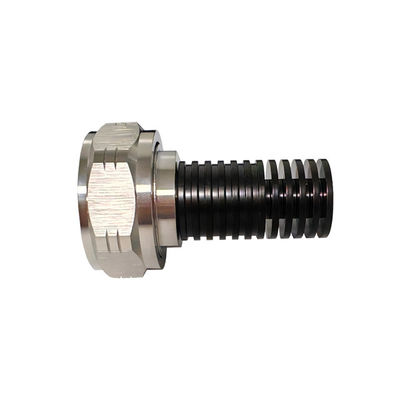

DC-6GHz 10W Dummy Load / Termination Load 50 Ohm Impedance
  • name
  • name
  • name

DC-6GHz 10W Dummy Load / Termination Load 50 Ohm Impedance

MOQ: 5pcs
Price: negotiation
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-LD-6G-10W-ODm-R
Operating Frequency:
DC-6000
Impedance ( Ohm ):
50
Interface:
DIN Male
VSWR:
1.25
Highlight:

DC-6GHz Dummy Load

,

50 Ohm Impedance Termination Load

,

VSWR 1.25 10W Dummy Load

Product Description

DC-6GHz 10W Dummy Load /Termination Load



  • Better heating shrink
  • Wide band
  • ROHS Compliance



                                                                                                                      VN-LD-6G-10W-ODm-R.pdf

Part Number VN-LD-6G-10W-ODm-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Male
Handling Power (Watt, max) 10
    Dimension (mm)(L×W×H, excl connector)     Φ35X52.1
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes









DC-6GHz 10W Dummy Load / Termination Load 50 Ohm Impedance 0

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
