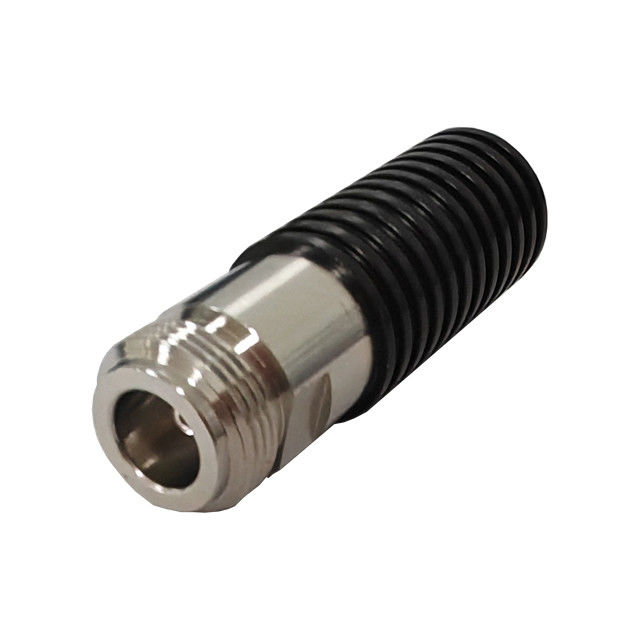

DC-6GHz 10W N Female Dummy Load / Termination Load Stable Performance
  • name
  • name
  • name

DC-6GHz 10W N Female Dummy Load / Termination Load Stable Performance

MOQ: 5pcs
Price: negotiation
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-LD-6G-10W-ONf-R
Operating Frequency:
DC-6000
Impedance ( Ohm ):
50
Interface:
N Female
VSWR:
1.25
Application:
Indoor & Outdoor
Dimension (mm):
Φ18X54.1
Highlight:

DC-6GHz Dummy Load

,

Stable Termination Load

,

10W Dummy Load

Product Description

DC-6GHz 10W N Female Dummy Load /Termination Load



  • Better heating shrink
  • Wide band
  • ROHS Compliance



RF Dummy Load model number VN-LD-6G-10W-OPm-R.Dummy load is a device used

to stop some port as a RF power load when testing other RF products or stop the RF

power radiation when some port is not used at present . the theory is matching

similar impedance to real device that will be connected to the RF System.



VN-LD-6G-10W-ONf-R.pdf

Part Number VN-LD-6G-10W-ONf-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 10
    Dimension (mm)(L×W×H, excl connector)     Φ18X54.1
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes









DC-6GHz 10W N Female Dummy Load / Termination Load Stable Performance 0

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
