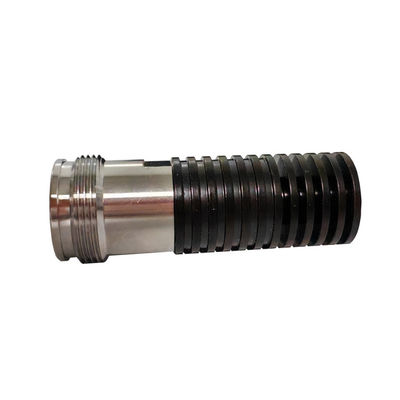

DC-6GHz 10W Dummy Load / Termination Load for RF Testing
DC-6GHz 10W Dummy Load / Termination Load for RF Testing
DC-6GHz 10W Dummy Load / Termination Load for RF Testing
DC-6GHz 10W Dummy Load / Termination Load for RF Testing

DC-6GHz 10W Dummy Load / Termination Load for RF Testing

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-LD-6G-10W-OPf-R

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

DC-6GHz Dummy Load

,

Termination Load for RF Testing

,

10W Dummy Load

Operating Frequency:
DC-6000
Impedance ( Ohm ):
50
Interface:
4.3-10 Female
VSWR:
1.25
Operating Frequency:
DC-6000
Impedance ( Ohm ):
50
Interface:
4.3-10 Female
VSWR:
1.25
Description
DC-6GHz 10W Dummy Load / Termination Load for RF Testing

DC-6GHz 10W Dummy Load /Termination Load



  • Good VSWR
  • Wide band
  • ROHS Compliance



                                                                                                                      VN-LD-6G-10W-OPf-R.pdf

Part Number VN-LD-6G-10W-OPf-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 10
    Dimension (mm)(L×W×H, excl connector)     Φ20X53.7
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes











DC-6GHz 10W Dummy Load / Termination Load for RF Testing 0
