350-6000MHz 2/3/4 Way 4.3-10F Power Splitter

Name: 350-6000MHz 2/3/4 Way 4.3-10F Power Splitter
Brand: Vinncom
SKU: VN-PS-03560-OP
Rating: 4.6 (142 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PS-03560-OP

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    OEM wideband hybrid coupler, Antenna wideband hybrid coupler, OEM low frequency directional coupler


Frequency:	350-6000Mhz	Connector:	4.3-10 Female
VSWR:	≤1.25；≤1.3	PIM:	-150/ -155/-161/-165
Application:	DAS IBS	ROHS:	Compliance

Frequency:	350-6000Mhz
Connector:	4.3-10 Female
VSWR:	≤1.25；≤1.3
PIM:	-150/ -155/-161/-165
Application:	DAS IBS
ROHS:	Compliance

Description

350-6000MHz 2/3/4 Way 4.3-10F Power Splitter

350-6000MHz 2/3/4 Way 4.3-10F Power Splitter

High isolation
Wide band
Good Flatness

VN-PS-03560-OP2-xxx.pdf

VN-PS-03560-OP3-xxx.pdf

VN-PS-03560-OP4-xxx.pdf

Part Number	VN-PS-03560-OP
Operating Frequency ( MHz )	350-6000
Impedance ( Ohm )	50
VSWR	2 way ≤1.25	3 way ≤1.25		4 way ≤1.3
Split Loss (dB)	2 way:3.5		3 way:5.6		4 way:7.1
IM3 (dBc @ 2×43dBm)	-150/ -155/-161/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	318 × 25 × 25	365 × 25 × 25		399 × 25 × 25
Net Weight (g)	550 ± 20	645 ± 20		735 ± 20
Packing Dimensions (mm,L×W×H)	420×80×40	420×80×40		460×80×60
Packing Carton Size (mm,L×W×H)	434×435×195	434×435×195		480×445×275
ROHS Compliance	Yes

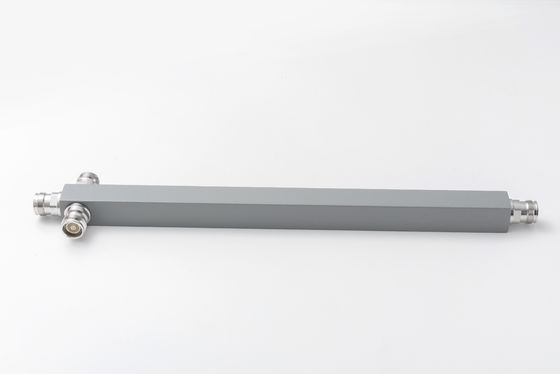

350-6000MHz 2/3/4 Way 4.3-10F Power Splitter 0

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
