550-6000MHz N Female Power Splitter

Name: 550-6000MHz N Female Power Splitter
Brand: Vinncom
SKU: VN-PS-05560-ON
Rating: 4.9 (150 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PS-05560-ON

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Antenna reactive splitter, PIM reactive splitter, Distributed 50 ohm antenna splitter


IM3 (dBc @ 2×43dBm):	-150/-155/-161/-165	Application:	Indoor & Outdoor
Operating Temperature ( ℃ ):	-40 ~ + 80	VSWR:	≤1.3
Impedance ( Ohm ):	50

IM3 (dBc @ 2×43dBm):	-150/-155/-161/-165
Application:	Indoor & Outdoor
Operating Temperature ( ℃ ):	-40 ~ + 80
VSWR:	≤1.3
Impedance ( Ohm ):	50

Description

550-6000MHz N Female Power Splitter

550-6000MHz Power Splitter N Female

Low PIM
Good VSWR
Wide band frequency

VN-PS-05560-ON2-xxx.pdf VN-PS-05560-ON3-xxx.pdf VN-PS-05560-ON4-xxx.pdf

Part Number	VN-PS-05560-ON
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤3.6	≤5.8	≤7.0
IM3 (dBc @ 2×43dBm)	-150 / -155 / -161/ -165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	218 × 25 × 25	269.2 × 25 × 25	262/282 × 25 × 25
Net Weight (g)	355± 5%	450± 5%	460/490± 5%
Packing Dimensions (mm,L×W×H)	260 × 80 × 40	320 × 80 × 40	320 × 80 × 40
Packing Carton Size (mm,L×W×H)	540 × 420 × 140	655 × 410 × 140	655 × 410 × 140
ROHS Compliance	Yes

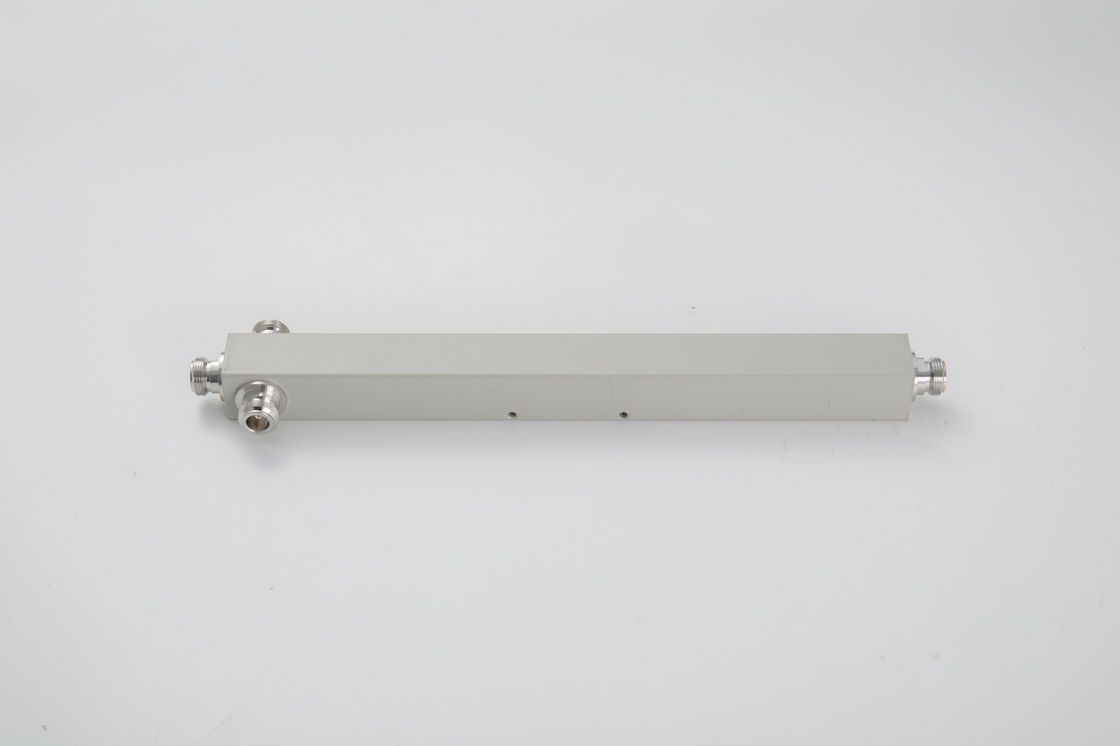

550-6000MHz N Female Power Splitter 0

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
