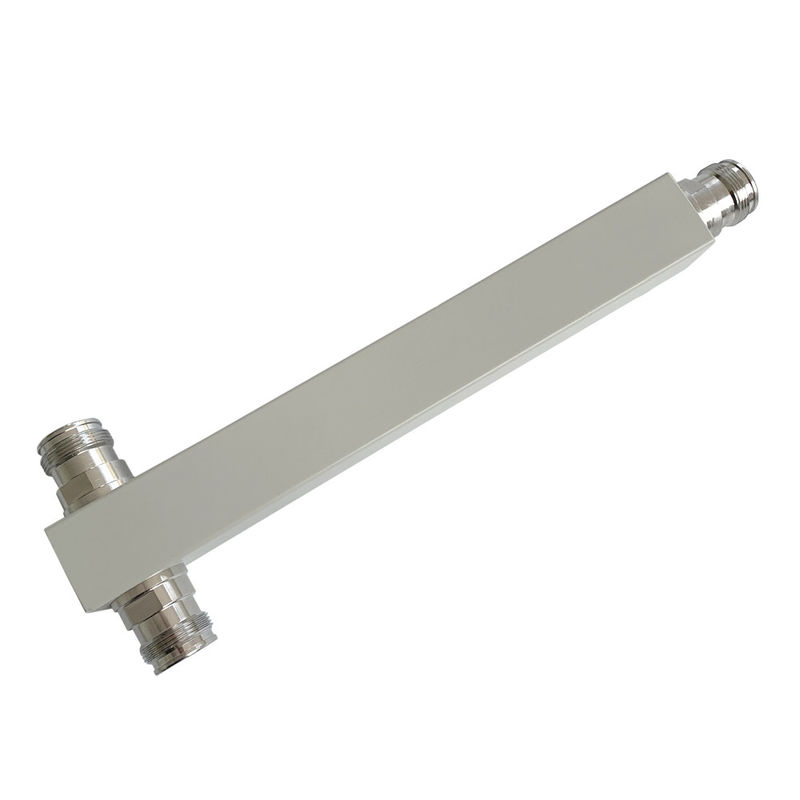

350/380-3800MHz 2 Way 4.3-10F Power Splitter

Name: 350/380-3800MHz 2 Way 4.3-10F Power Splitter
Brand: Vinncom
SKU: VN-PS-03538-OP2
Rating: 4.7 (120 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-03538-OP2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/P, D/A, L/C, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    ROHS RF Antenna Splitter, 2 way RF Antenna Splitter, 3800MHz 2 way aerial splitter


Color:	Can Be Customized	Frequency:	350-3800MHz 380-3800MHz
Connector:	4.3-10 Female	Material:	Alum
Design:	Small Size	Pim:	-165dbc@testing 450~3500

Color:	Can Be Customized
Frequency:	350-3800MHz 380-3800MHz
Connector:	4.3-10 Female
Material:	Alum
Design:	Small Size
Pim:	-165dbc@testing 450~3500

Description

350/380-3800MHz 2 Way 4.3-10F Power Splitter

350-3800MHz 380-3800MHz 4.3-10 Mini Din Female IP65 Low Pim -163dBc 2 Way Reactive Power Splitter For DAS IBS

Wide band frequency
Low PIM up to -155/-160dBc@43dBm*2
Good VSWR at all ports

VN-PS-03438-OP2-xxx.pdf

Part Number	VN-PS-03538-OP2
Operating Frequency ( MHz )	350/380-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤3.7
IM3 (dBc @ 2×43dBm)	-155/ -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	375 ± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 35
Packing Carton Size (mm,L×W×H)	500 × 420 × 160
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
