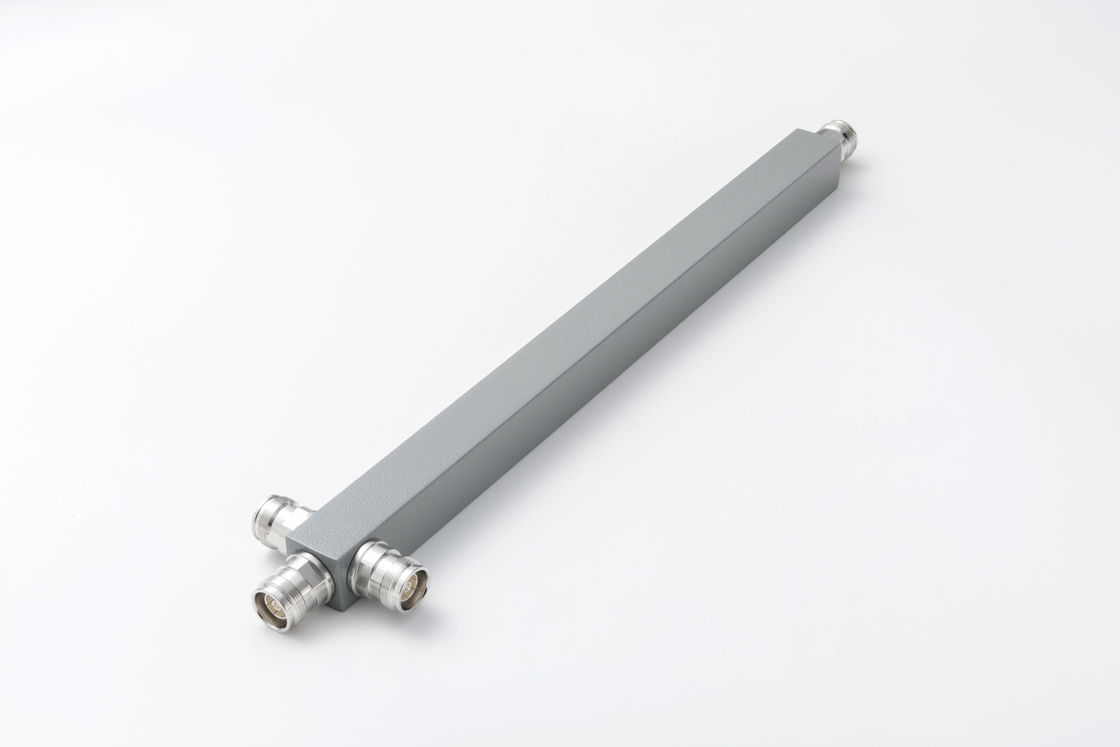

380-3800MHz 4.3-10F Power Splitter

Name: 380-3800MHz 4.3-10F Power Splitter
Brand: Vinncom
SKU: VN-PS-03838-OPx
Rating: 4.6 (189 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PS-03838-OPx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    380MHz RF Antenna Splitter, TV RF Antenna Splitter, PIM tv antenna splitter


Operating Frequency ( MHz ):	380-3800	Impedance ( Ohm ):	50
VSWR:	2 Way≤1.25 3 Way≤1.25 4 Way≤1.3	Split Loss (dB):	2 Way≤3.6 3 Way≤5.6 4 Way≤7.0
IM3 (dBc @ 2×43dBm):	-150/-155/-161/-165	Interface:	4.3-10 Female

Operating Frequency ( MHz ):	380-3800
Impedance ( Ohm ):	50
VSWR:	2 Way≤1.25 3 Way≤1.25 4 Way≤1.3
Split Loss (dB):	2 Way≤3.6 3 Way≤5.6 4 Way≤7.0
IM3 (dBc @ 2×43dBm):	-150/-155/-161/-165
Interface:	4.3-10 Female

Description

380-3800MHz 4.3-10F Power Splitter

380-3800MHz Power Splitter 4.3-10 Female -150/-155/-161/-165

Good VSWR at all ports
Wide band frequency
Low PIM

VN-PS-03438-OP2-xxx.pdf VN-PS-03438-OP3-xxx.pdf VN-PS-03438-OP4-xxx.pdf

Part Number	VN-PS-03838-OPx
Operating Frequency ( MHz )	380-3800
Impedance ( Ohm )	50
VSWR	2 way≤1.25	3 way≤1.25	4 way≤1.3
Split Loss (dB)	≤3.6	≤5.6	≤7.0
IM3 (dBc @ 2×43dBm)	-150/-155/-161/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-45 ~ + 60
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	318 × 25 × 25	365 × 25 × 25	399 × 25 × 25
Net Weight (g)	550± 20	645± 20	735± 20
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM
