698-2700/3800MHz 2 Way N Female Power Splitter

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-0727-ON2-S / VN-PS-0738-ON2-S

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/P, D/A, L/C, T/T

Supply Ability: 2000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

N Female Reactive Splitter

,

DAS IBS Reactive Splitter

,

-163dBC 2 way power divider

Color:
Can Be Customized
Frequency:
698-2700MHz/3800MHz
Connector:
N Female
Material:
Alum
Color:
Can Be Customized
Frequency:
698-2700MHz/3800MHz
Connector:
N Female
Material:
Alum
Description
698-2700/3800MHz 2 Way N Female Power Splitter
698-2700/3800MHz N Female 2 Way Cavity Reactive Splitter PIM -160/163dBC For DAS IBS

  • Good VSWR at all ports
  • Low PIM up to -155/-163dBc@43dBm*2
  • Wide band frequency

Part Number VN-PS-0727-ON2-S / VN-PS-0738-ON2-S
Operating Frequency ( MHz ) 698-2700/3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.3
IM3 (dBc @ 2×43dBm)  -155 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    200 × 25 × 25
Net Weight (g) 330 ± 20
Packing Dimensions (mm,L×W×H) 240 × 80 × 35
Packing Carton Size (mm,L×W×H) 500 × 420 × 160
ROHS Compliance Yes

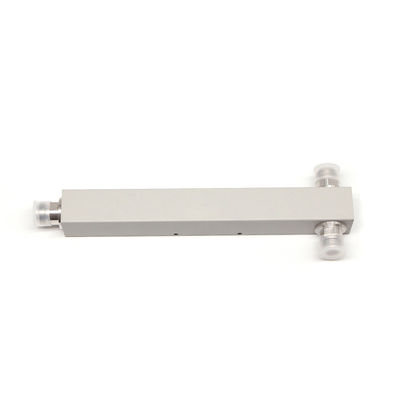

698-2700/3800MHz 2 Way N Female Power Splitter 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
