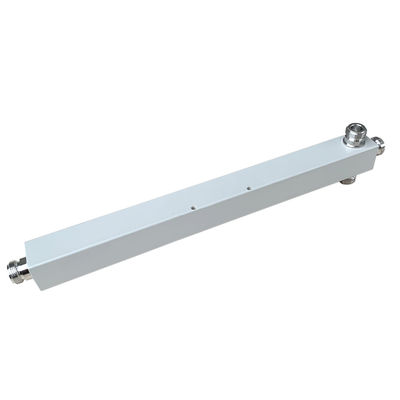

550-6000MHz 3Way N Female Power Splitter
  • name
  • name
  • name
  • name

550-6000MHz 3Way N Female Power Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PS-05560-ON3
Frequency:
550-6000MHz 600-6000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

DAS IBS RF Antenna Splitter

,

6000MHz RF Antenna Splitter

,

6000MHz 3 way splitter electrical

Product Description

550-6000MHz N Female  Low PIM -165dbc 3 Way Reactive Power Splitter Divider For DAS IBS



  • Wide band frequency
  • Good VSWR
  • Low PIM



   VN-PS-05560-ON3-xxx.pdf

Part Number VN-PS-05560-ON3
Operating Frequency ( MHz ) 550-6000
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤5.8( smooth on test)
IM3 (dBc @ 2×43dBm) -155/ -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    269.2 × 25 × 25
Net Weight (g) 450± 20
Packing Dimensions (mm,L×W×H) 320 × 80 × 60
Packing Carton Size (mm,L×W×H) 655× 410 × 140
ROHS Compliance Yes









550-6000MHz 3Way N Female Power Splitter 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.



Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
