350/380-3800MHz 3 Way N Female Power Splitter
  • name
  • name
  • name
  • name

350/380-3800MHz 3 Way N Female Power Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/P, D/A, L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PS-03538-ON3
Color:
Can Be Customized
Frequency:
350-3800MHz 380-3800MHz
Connector:
N Female
Material:
Alum
Design:
Small Size
Pim:
-165dbc@testing 450~3500
Highlight:

3 way RF Antenna Splitter

,

ISO9000 RF Antenna Splitter

,

Vinncom rf splitter combiner

Product Description

350-3800MHz 380-3800MHz N Female IP65 Low Pim -163dBc 3 Way Reactive Power Splitter For DAS IBS

  • Good VSWR at all ports
  • Low PIM
  • Wide band frequency



   VN-PS-03438-ON3-xxx.pdf

Part Number VN-PS-03538-ON3
Operating Frequency ( MHz ) 350/380-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤6.2
IM3 (dBc @ 2×43dBm) -155/ -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    294× 25 × 25
Net Weight (g) 475± 20
Packing Dimensions (mm,L×W×H) 350X80X35
Packing Carton Size (mm,L×W×H) 420X355X230
ROHS Compliance Yes

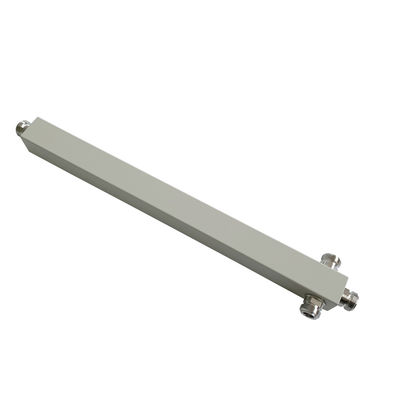

350/380-3800MHz 3 Way N Female Power Splitter 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
