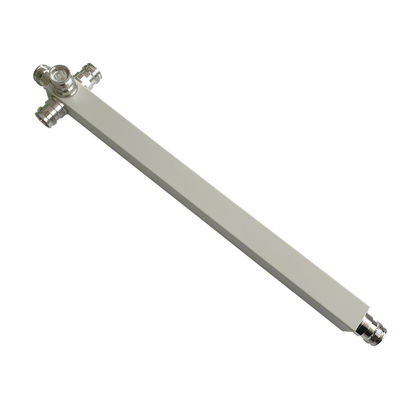

350/380-3800MHz 4 Way 4.3-10F Power Splitter

MOQ:	5 pcs
Price:	Negotiable
Payment Method:	D/P, D/A, L/C, T/T
Supply Capacity:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-PS-03538-OP4

Color:

Can Be Customized

Frequency:

350-3800MHz 380-3800MHz

Connector:

4.3-10 Female

Material:

Design:

Small Size

-165dbc@testing 450~3500

Highlight:

IP65 rf power splitter

-163dBc rf power splitter

IP65 4 way aerial splitter

Product Description

350-3800MHz 380-3800MHz 4.3-10 Mini Din Female 4 way IP65 Low Pim -163dBc Reactive Power Splitter For DAS IBS

High power handling splitters
Low PIM
Good VSWR

VN-PS-03438-OP4-xxx.pdf

Part Number	VN-PS-03538-OP4
Operating Frequency ( MHz )	350/380-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤7.7
IM3 (dBc @ 2×43dBm)	-155/ -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	338 × 25 × 25
Net Weight (g)	655 ± 20
Packing Dimensions (mm,L×W×H)	390X80X50
Packing Carton Size (mm,L×W×H)	500X395X270
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
