300-1000MHz N Female Power Splitter

Name: 300-1000MHz N Female Power Splitter
Brand: Vinncom
SKU: VN-PS-0310-ONx
Rating: 4.7 (191 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PS-0310-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            300W tv signal splitter, 300Mhz tv signal splitter, 300W outdoor aerial splitter


Frequency:	300-1000Mhz	Connector:	N Female
PIM:	-150/ -155/-161/-165	Application:	Indoor & Outdoor
ROHS:	Compliance

Frequency:	300-1000Mhz
Connector:	N Female
PIM:	-150/ -155/-161/-165
Application:	Indoor & Outdoor
ROHS:	Compliance

Description

300-1000MHz N Female Power Splitter

300-1000Mhz N Female Power Splitter PIM -150/ -155/-161/-165 For DAS IBS

Low PIM
Good VSWR
High power handling splitters

VN-PS-0310-ON2-xxx.pdf VN-PS-0310-ON3-xxx.pdf VN-PS-0310-ON4-xxx.pdf

Part Number	VN-PS-0310-ONx
Operating Frequency ( MHz )	300-1000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	2 way:3.2		3 way:5.1		4 way:6.3
IM3 (dBc @ 2×43dBm)	-150/ -155/-161/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	368.3 × 25 × 25	480.9 × 25 × 25		480 × 25 × 25
Net Weight (g)
Packing Dimensions (mm,L×W×H)	530×80×40	530×80×40		530×80×60
Packing Carton Size (mm,L×W×H)
ROHS Compliance	Yes

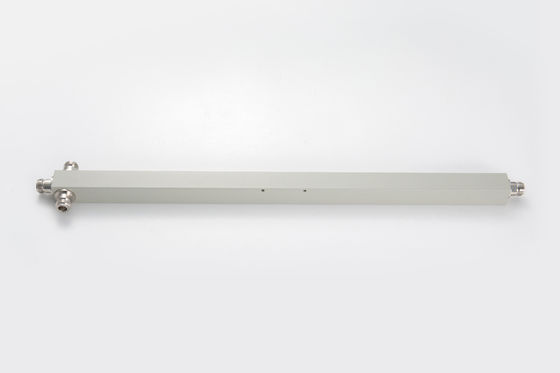

300-1000MHz N Female Power Splitter 0

Power Splitter have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM
