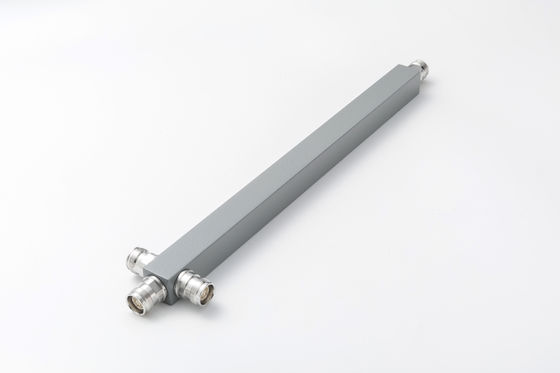

380-3800MHz 4.3-10F Power Splitter

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

380-3800MHz 4.3-10F Power Splitter

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-PS-03838-OPx

Operating Frequency ( MHz ):

380-3800

Impedance ( Ohm ):

VSWR:

2 Way≤1.25 3 Way≤1.25 4 Way≤1.3

Split Loss (dB):

2 Way≤3.6 3 Way≤5.6 4 Way≤7.0

IM3 (dBc @ 2×43dBm):

-150/-155/-161/-165

Interface:

4.3-10 Female

Highlight:

380MHz RF Antenna Splitter

TV RF Antenna Splitter

PIM tv antenna splitter

Product Description

380-3800MHz Power Splitter 4.3-10 Female -150/-155/-161/-165

Good VSWR at all ports
Wide band frequency
Low PIM

VN-PS-03438-OP2-xxx.pdf VN-PS-03438-OP3-xxx.pdf VN-PS-03438-OP4-xxx.pdf

Part Number	VN-PS-03838-OPx
Operating Frequency ( MHz )	380-3800
Impedance ( Ohm )	50
VSWR	2 way≤1.25	3 way≤1.25	4 way≤1.3
Split Loss (dB)	≤3.6	≤5.6	≤7.0
IM3 (dBc @ 2×43dBm)	-150/-155/-161/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-45 ~ + 60
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	318 × 25 × 25	365 × 25 × 25	399 × 25 × 25
Net Weight (g)	550± 20	645± 20	735± 20
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM
