550-2700MHz 2Way N Female Wilkinson Splitter

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PD-05527-ON2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

2700MHz Wilkinson Power Divider

,

550MHz Wilkinson Power Divider

,

Low PIM two way power divider

Frequency:
550-2700MHz 698-2700MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Frequency:
550-2700MHz 698-2700MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Description

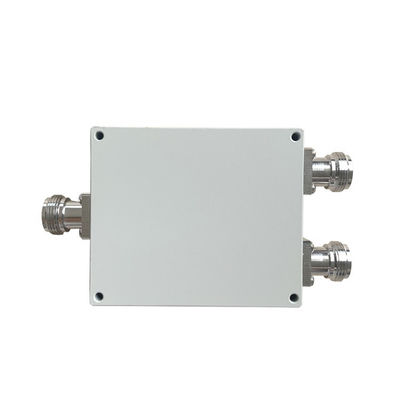

550-2700MHz 2Way N Female Wilkinson Splitter

550-2700MHz N Female  2 Way Wilkinson Power Divider For Commercial  DAS IBS



  • Wide band frequency
  • Good VSWR at all ports
  • High isolation



       VN-PD-05527-ON2.pdf

Part Number VN-PD-05527-ON2
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤3.5
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 50(2w as combiner)
Peak Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    79.5 × 67× 21
Net Weight (g) 290 ± 20
Packing Dimensions (mm,L×W×H) 180× 75 × 30
Packing Carton Size (mm,L×W×H) 400 ×380 × 170
ROHS Compliance Yes








550-2700MHz 2Way N Female Wilkinson Splitter 0



Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
