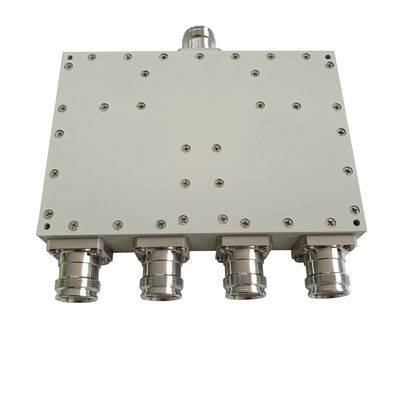

550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter
  • name
  • name
  • name
  • name

550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-05527-OP4
Frequency:
550-2700MHz 698-2700MHz
Connector:
4.3-10 Mini Din Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

Wilkinson 4 Way Divider

,

2700MHz 4 way divider

,

200W rf power splitter

Product Description

550-2700MHz 4.3-10 Mini Female  4 Way Wilkinson Power Divider For Commercial DAS IBS



  • Good VSWR at all ports
  • High isolation
  • Less Insertion Loss

Part Number VN-PD-05527-OP4
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤7
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 200(2w as combiner)
   Dimension (mm)(L×W×H, excl connector)    146×103× 29
Net Weight (g) 1055±20
Packing Dimensions (mm,L×W×H) 225X160X35
Packing Carton Size (mm,L×W×H) 330X230X15
ROHS Compliance Yes











550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter 0



Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
