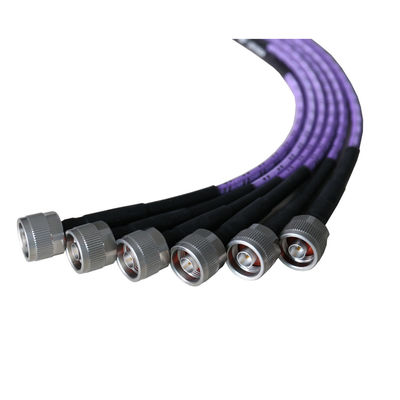

40G Flexible Signal RF Test Cables VN280 High Phase Stability

Name: 40G Flexible Signal RF Test Cables VN280 High Phase Stability
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN280
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN280

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Delivery Time: 2-4weeks

Payment Terms: T/T, Western Union

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      40G RF Test Cables, Signal RF Test Cables, 40G Signal cable


Frequency::	DC~40GHz	Cut-off Frequency::	62GHz
Impedance::	50Ω	Velocity Of Propagation::	70%
Shielding Effectiveness::	90dB Min.	Voltage Withstand::	500V DC

Frequency::	DC~40GHz
Cut-off Frequency::	62GHz
Impedance::	50Ω
Velocity Of Propagation::	70%
Shielding Effectiveness::	90dB Min.
Voltage Withstand::	500V DC

Description

40G Flexible Signal RF Test Cables VN280 High Phase Stability

VN280 40G High Phase Stability Flexible Alternate to semi-rigid cable

Wide band frequency
Phase Stability
Low PIM

Flexible, Alternate to semi-rigid cable

Features:	Applications:
* Phase Stability	* Phased-array Radar
* Low PIM	* Interconnection in and between equipment

Electrical

Frequency:	DC~40GHz
Cut-off Frequency:	62GHz
Impedance:	50Ω
Velocity of Propagation:	70%
Shielding Effectiveness:	90dB min.
Voltage Withstand:	500V DC

40G Flexible Signal RF Test Cables VN280 High Phase Stability 0

No.	Name	Size (mm)	Material
1	Inner Conductor	0.53	Silver-plated copper
2	Dielectric	1.63	PTFE
3	Inner Shield	1.83	Silver-plated copper tape
4	Outer Shield	2.18	Silver-plated copper braid
5	Jacket	2.65	FEP

Mechanical

Bend Radius (installation):	13.0mm
Bend Radius (repeated):	26.0mm
Weight:	22g/m

Attenuation & Power Handling

Frequency (GHz)	0.3	0.5	1	2.4	3	6	8	10	12.4	18	26.5
Attenuation^*¹ (dB/100m)	19.9	26.2	38.2	62.5	71.1	107.5	128.3	147.6	169.4	216.1	280.6
Average Power^*² (W)	512	423	290	177	156	103	86	75	65	51	39

Environmental

Temperature:

-55~+125℃

Connector naming rules:

2 - 2.4mm (40GHz, VSWR 1.35)

K - 2.92mm (40GHz, VSWR 1.35)

P - SMP (26.5GHz, VSWR 1.3)

A - SSMA (26.5GHz, VSWR 1.3)

S - SMA (26.5GHz, VSWR 1.3)

G - Mini-SMP (mateable with GPPO & SSMP, 18GHz, VSWR 1.3)

N - N (18GHz, VSWR 1.25)

X - MMCX (6GHz, VSWR 1.3)

M - MCX (6GHz, VSWR 1.3)

B - BNC (4GHz, VSWR 1.4)

D - SMB (4GHz, VSWR 1.25)

Female Connector - Add‘F’after connector name

Right Angle - Add‘R’after connector name (VSWR increase 0.1)
