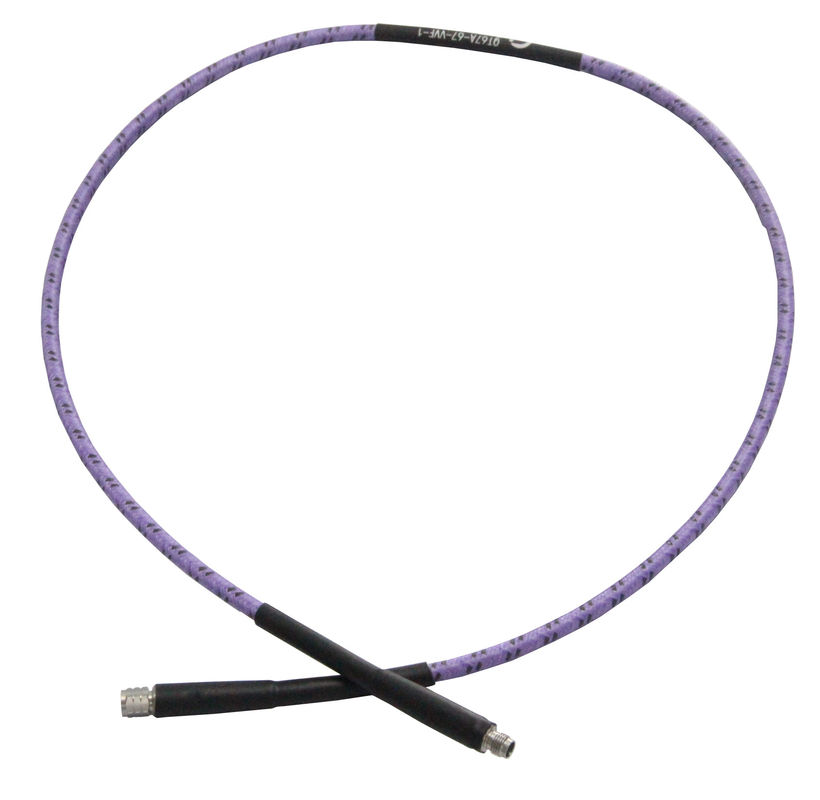

67G Coaxial RF Test Cables Assemblies 50 Ohm Impedance

Name: 67G Coaxial RF Test Cables Assemblies 50 Ohm Impedance
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN67
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN67

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Delivery Time: 2-4weeks

Payment Terms: T/T, Western Union

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Coaxial RF Test Cables, 67G RF Test Cables, 50 ohm rf coaxial cable


Frequency:	DC~67GHz	Impedance:	50Ω
Velocity Of Propagation:	81%	Shielding Effectiveness:	90dB Min.
Voltage Withstand:	500V DC	Phase Stability*:	±7°
Amplitude Stability:	±0.05dB

Frequency:	DC~67GHz
Impedance:	50Ω
Velocity Of Propagation:	81%
Shielding Effectiveness:	90dB Min.
Voltage Withstand:	500V DC
Phase Stability*:	±7°
Amplitude Stability:	±0.05dB

Description

67G Coaxial RF Test Cables Assemblies 50 Ohm Impedance

67G High Durability Performance Test Cable Assemblies

Low Insertion Loss
High Power
High Phase Stability

Phase & Loss Stable, Long Flex Life

Features:	Applications:
* Low Insertion Loss	* Laboratory Test
* High Phase Stability	* Avionics
* High Power	* Phased-array Radar
* High Durability	* Satellite Communication

Electrical

Frequency:	DC~67GHz
Impedance:	50Ω
Velocity of Propagation:	81%
Shielding Effectiveness:	90dB min.
Voltage Withstand:	500V DC
Phase Stability^*1:	±7°
Amplitude Stability^*1:	±0.05dB

[1] 50mm radius, 360° bending

Mechanical

Unarmored Bend Radius (installation/repeated):	12mm/24mm min.
Armored Bend Radius (installation/repeated):	30mm/60mm min.
Bending Life Cycle:	100,000
Mating Life Cycle^*2:	5,000

[2] For connectors 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMA only.

Environmental

Temperature:

-55~+125℃

Attenuation & Power Handling

Frequency (GHz)	1	2	4	6	8	10	12	18	26.5	33	40	50	67
Attenuation^*3 (dB/100m)	64	91	130	161	187	210	232	288	355	400	445	503	594
Average Power^*4 (W)	97	68	47	38	33	29	27	21	17	15	14	12	10

[3] VSWR:1.0; Ambient: +25℃ (77℉); Raw cable
[4] VSWR:1.0; Ambient: +40℃ (104℉); Sea level

Construction
67G Coaxial RF Test Cables Assemblies 50 Ohm Impedance 0

No.	Name	Size (mm)	Material
1	Inner Conductor	0.50	Silver-plated copper
2	Dielectric	1.38	Low density PTFE
3	Inner Shield	1.54	Silver-plated copper tape
4	Interlayer	1.82	Low density PTFE
5	Outer Shield	2.17	Silver-plated copper braid
6	Jacket	2.40	FEP
7~9	Armor (optional)	5.50	Composite
10		6.00	PTFE

Connector naming rules:
V - 1.85mm (67GHz, VSWR 1.5)
G - Mini-SMP (mateable with GPPO & SSMP, 65GHz, VSWR 1.8)
2 - 2.4mm (50GHz, VSWR 1.4)
K - 2.92mm (40GHz, VSWR 1.35)
A - SSMA (40GHz, VSWR 1.35)
P - SMP (40GHz, VSWR 1.35)
3 - 3.5mm (33GHz, VSWR 1.35)
S - SMA (26.5GHz, VSWR 1.3)

Female Connector - Add‘F’after connector name
Right Angle - Add‘R’after connector name (VSWR increase 0.1)

How To Order
VN67W-X-Y-Z
VN:Vinncom
W: Armor: P, without armor: blank
X: Frequency In GHz
Y: Connector type
Z: Length in meters

Examples:
To order a VN67 test cable assembly with armor, DC-60GHz,1.85mm male to 1.85mm female, 0.5 meter, specify VN67P-60-VVF-0.5.

QT67 Mating Connector

VN-QCV-MG-T67-3
1.85mm male, Stainless steel

VN-QCV-FG-T67-2
1.85mm female, Stainless steel

QT67P Mating Connector

VN-QCV-MG-T67P-4
1.85mm male, Stainless steel

VN-QCV-FG-T67P-2
1.85mm female, Stainless steel
