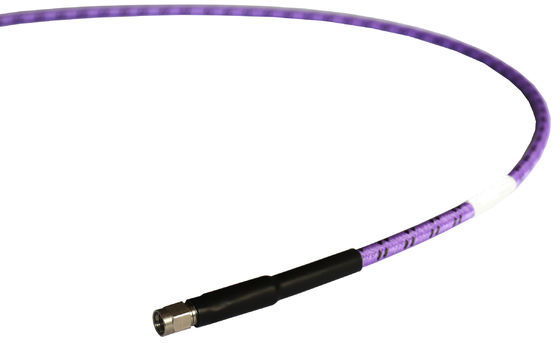

High Performance Avionics RF Test Cables Assemblies Lead 50G
  • name
  • name
  • name

High Performance Avionics RF Test Cables Assemblies Lead 50G

MOQ: 5pcs
Price: negotiation
Delivery Period: 2-4weeks
Payment Method: T/T, Western Union
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN50
Frequency::
DC~50GHz
Velocity Of Propagation::
76%
Shielding Effectiveness::
90dB Min.
Voltage Withstand:
500V DC
Phase Stability*:
±7°
Amplitude Stability:
±0.05dB
Highlight:

50G RF Test Cables

,

Avionics RF Test Cables

,

Avionics rf lead

Product Description

Phase & Loss Stable, Long Flex Life 50G High Performance Test Cable Assemblies



  • Low Insertion Loss
  • High Power
  • High Durability



Phase & Loss Stable, Long Flex Life

Features: Applications:
* Low Insertion Loss * Laboratory Test
* High Phase Stability * Avionics
* High Power * Phased-array Radar
* High Durability * Satellite Communication





Electrical

Frequency: DC~50GHz
Impedance: 50Ω
Velocity of Propagation: 76%
Shielding Effectiveness: 90dB min.
Voltage Withstand: 500V DC
Phase Stability*1: ±7°
Amplitude Stability*1: ±0.05dB

[1] 50mm radius, 360° bending



Mechanical

Unarmored Bend Radius

(installation/repeated):

 18mm/36mm min.

Armored Bend Radius

(installation/repeated):

 30mm/60mm min.
Bending Life Cycle: 100,000
Mating Life Cycle*2: 5,000



[2] For connectors 2.4mm, 2.92mm, 3.5mm, SMA, N only.





Environmental

Temperature: -55~+165℃





Attenuation & Power Handling

Frequency (GHz) 1 2 3 6 8 10 12.4 18 26.5 40 50
Attenuation*3 (dB/100m) 48.1 68.3 83.9 119.4 138.4 155.2 173.4 210.2 257.1 319.2 359.2
Average Power*4 (W) 506 356 290 204 176 157 140 116 95 76 68

[3] VSWR:1.0; Ambient: +25℃ (77℉); Raw cable

[4] VSWR:1.0; Ambient: +40℃ (104℉); Sea level





Construction

High Performance Avionics RF Test Cables Assemblies Lead 50G 0





No. Name Size (mm) Material
1 Inner Conductor 0.72 Silver-plated copper
2 Dielectric 2.1 Low density PTFE
3 Inner Shield 2.25 Silver-plated copper tape
4 Interlayer 2.55 Low density PTFE
5 Outer Shield 3.01 Silver-plated copper braid
6 Jacket 3.60 FEP
7~9 Armor (optional) 5.50 Composite
10   6.00 PTFE





Connector naming rules:

2 - 2.4mm (50GHz, VSWR 1.4)

K - 2.92mm (40GHz, VSWR 1.25)

3 - 3.5mm (33GHz, VSWR 1.35)

S - SMA (26.5GHz, VSWR 1.25)

N - N (18GHz, VSWR 1.25)



Female Connector - Add‘F’after connector name

Right Angle - Add‘R’after connector name(VSWR increase 0.1)





How To Order

VN50W-X-Y-Z

VN:Vinncom

W: Armor: P, without armor: blank

X: Frequency In GHz

Y: Connector type

Z: Length in meters



T50 Mating Connector

VN-QC2-MG-T50-2

2.4mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 1

VN-QC3-FG-T50-1

3.5mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 2

VN-QC2-FG-T50-1

2.4mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 3

VN-QCS-MG-T50-1

SMA male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 4

VN-QCK-MG-T50-1

2.92mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 5

VN-QCS-FG-T50-1

SMA female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 6

VN-QCK-FG-T50-1

2.92mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 2

VN-QCN-MG-T50-4

N female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 8

VN-QC3-MG-T50-1

3.5mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 5





T50P Mating Connector



VN-QC2-MG-T50P-4

2.4mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 10

VN-QC3-MG-T50P-1

3.5mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 11

VN-QC2-FG-T50P-4

2.4mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 12

VN-QC3-FG-T50P-1

3.5mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 13

VN-QCK-MG-T50P-4

2.92mm male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 11

VN-QCS-MG-T50P-3

SMA male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 15

VN-QCK-FG-T50P-3

2.92mm female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 13

VN-QCS-FG-T50P-1

SMA female, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 17

VN-QCN-MG-T50P-3

N male, Stainless steel

 High Performance Avionics RF Test Cables Assemblies Lead 50G 18
