Low Insertion Loss RF Test Cables Assemblies 110G For Laboratory
  • name
  • name
  • name

Low Insertion Loss RF Test Cables Assemblies 110G For Laboratory

MOQ: 5pcs
Price: negotiation
Delivery Period: 2-4weeks
Payment Method: T/T, Western Union
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN110
Frequency:
DC~110GHz
Impedance:
50Ω
Velocity Of Propagation:
80%
Shielding Effectiveness:
90dB Min
Voltage Withstand:
400V DC
Bending Life Cycle:
50,000
Highlight:

Laboratory RF Test Cables

,

110G RF Test Cables

,

110G rf test cable assemblies

Product Description

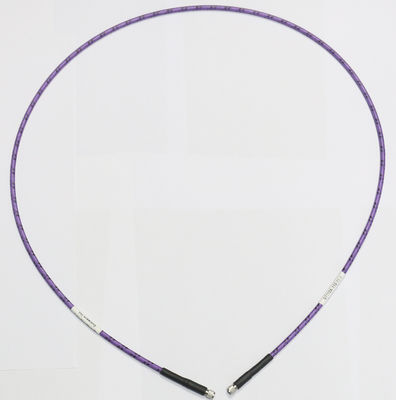

110G Low Insertion Loss High Phase Stability Test Cable Assemblies



  • Wide band frequency
  • High Phase Stability
  • Low Insertion Loss



VN110

Phase & Loss Stable, Long Flex Life

Features: Applications:
* Low Insertion Loss * Laboratory Test
* High Phase Stability * Avionics
* High Power * Phased-array Radar
* High Durability * Satellite Communication



Electrical

Frequency: DC~110GHz
Impedance: 50Ω
Velocity of Propagation: 80%
Shielding Effectiveness: 90dB min.
Voltage Withstand: 400V DC



Mechanical

Unarmored Bend Radius

(installation/repeated):

 10mm/20mm min.

Armored Bend Radius

(installation/repeated):

 30mm/50mm min.
Bending Life Cycle: 50,000





Environmental

Temperature: -55~+125℃



Construction

Low Insertion Loss RF Test Cables Assemblies 110G For Laboratory 0



No. Name Size (mm) Material
1 Inner Conductor 0.31 Silver-plated copper
2 Dielectric 0.88 Low density PTFE
3 Inner Shield 1 Silver-plated copper tape
4 Interlayer 1.2 Low density PTFE
5 Outer Shield 1.45 Silver-plated copper braid
6 Jacket 1.85 FEP
7~9 Armor (optional) 2.7 Composite
10   3.84 PTFE



Attenuation & Power Handling

Frequency (GHz) 26.5 40 50 67 71 77 79 81 86 92 96 110
Attenuation*1 (dB/100m) 612 760 857 1003 1035 1081 1096 1111 1148 1191 1220 1314
Average Power*2 (W) 19 15 13 11 11 10 10 10 10 9 9 8

[1] VSWR:1.0; Ambient: +25℃ (77℉); Raw cable

[2] VSWR:1.0; Ambient: +40℃ (104℉); Sea level
