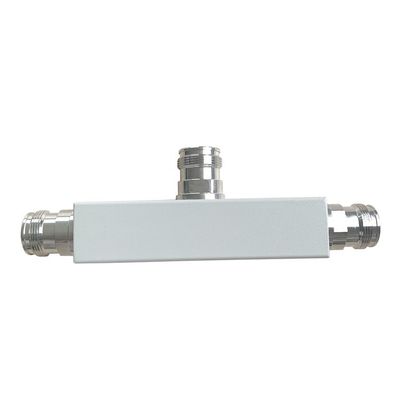

7db N Female Power RF Tapper 150/155/160dBc 350-6000MHz

Name: 7db N Female Power RF Tapper 150/155/160dBc 350-6000MHz
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-TAP-03560-ON7
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: vinncom

Model Number: VN-TAP-03560-ON7

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: USD 7~12

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    350-6000MHz RF Tapper, 7db RF Tapper, 150/155/160dBc RF Tapper


Part Number:	VN-TAP-03560-ON7	Operating Frequency ( MHz ):	350-6000
Impedance ( Ohm ):	50	VSWR:	≤1.35
IM3 (dBc @ 2×43dBm):	-150 / -155/-160	Attenuation (dB):	7 ± 1.7

Part Number:	VN-TAP-03560-ON7
Operating Frequency ( MHz ):	350-6000
Impedance ( Ohm ):	50
VSWR:	≤1.35
IM3 (dBc @ 2×43dBm):	-150 / -155/-160
Attenuation (dB):	7 ± 1.7

Description

7db N Female Power RF Tapper 150/155/160dBc 350-6000MHz

7db N Female Power RF Tapper -150/-155/-160dBc 350-6000MHz

Wide band frequency
Good VSWR
Low PIM

PartNumber		VN-TAP-03560-OP7
Operating Frequency ( MHz )		350-960/1710-2700/3500-4500/4900-6000
Impedance ( Ohm )		50
Tapper coupling(dB)		7
Coupling loss (dB)		≤1.5
VSWR	350-960MHz	1.32
	1710-2700MHz	1.32
	3400-4500MHz	1.34
	4900-6000MHz	1.35
Coupling Tolerance(dB)	350-960MHz	±1.7
	1710-2700MHz	±1.6
	3400-4500MHz	±1.5
	4900-6000MHz	±1.7
IM3 (dBc @ 2×43dBm)		-150/-155/- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP67
Operating Temperature ( ℃ )		-35~75ºC
Interface		N Female
Dimension (mm)(L×W× H, excl connector)		972525
ROHS Compliance		Yes
Remark		Install Bracket Include

Vinncom has variety of RF tapper with different frequency range and connector's types.7dB Tapper contains four frequency segments,three kinds of PIM.RF Tapper is a device which similar to directional coupler,it is used to split an input signal into two parts for signal tapping out and main signal transmission,RF Tappers have no isolation port ,so this cause RF tapper has no directivity.
