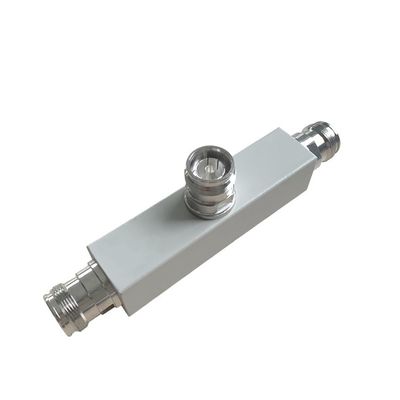

8db N Female Power RF Tapper 150/155/160dBc 350-6000MHz

Name: 8db N Female Power RF Tapper 150/155/160dBc 350-6000MHz
Brand: vinncom
SKU: VN-TAP-03560-ON8
Price: 7 USD
Availability: InStock
Rating: 4.6 (174 reviews)

Product Details

Place of Origin: china

Brand Name: vinncom

Model Number: VN-TAP-03560-ON8

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: USD 7~12

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    350-6000MHz RF Tapper, 150/155/160dBc RF Tapper, 8db RF Tapper


Part Number:	VN-TAP-03560-ON8	Operating Frequency ( MHz ):	350-6000
Impedance ( Ohm ):	50	VSWR:	≤1.34
IM3 (dBc @ 2×43dBm):	-150 / -155/-160	Attenuation (dB):	8 ± 1.7

Part Number:	VN-TAP-03560-ON8
Operating Frequency ( MHz ):	350-6000
Impedance ( Ohm ):	50
VSWR:	≤1.34
IM3 (dBc @ 2×43dBm):	-150 / -155/-160
Attenuation (dB):	8 ± 1.7

Description

8db N Female Power RF Tapper 150/155/160dBc 350-6000MHz

8db N Female Power RF Tapper -150/-155/-160dBc 350-6000MHz

Good VSWR at all ports
Wide band frequency
Less Insertion Loss

PartNumber		VN-TAP-03560-OP8
Operating Frequency ( MHz )		350-960/1710-2700/3500-4500/4900-6000
Impedance ( Ohm )		50
Tapper coupling(dB)		8
Coupling loss (dB)		≤1.2
VSWR	350-960MHz	1.32
	1710-2700MHz	1.32
	3400-4500MHz	1.33
	4900-6000MHz	1.34
Coupling Tolerance(dB)	350-960MHz	±1.7
	1710-2700MHz	±1.6
	3400-4500MHz	±1.5
	4900-6000MHz	±1.7
IM3 (dBc @ 2×43dBm)		-150/-155/- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP67
Operating Temperature ( ℃ )		-35~75ºC
Interface		N Female
Dimension (mm)(L×W× H, excl connector)		972525
ROHS Compliance		Yes
Remark		Install Bracket Include

Vinncom has variety of RF tapper with different frequency range and connector's types.8dB Tapper contains four frequency segments,three kinds of PIM.
