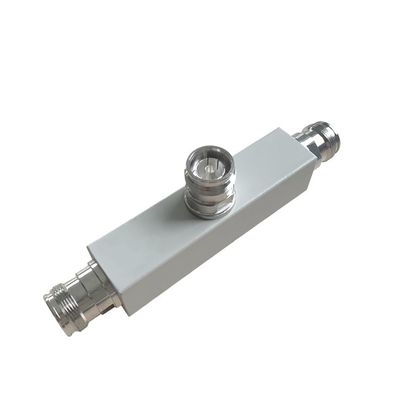

20db N Female Power RF Tapper 150/155/160dBc 350-6000MHz

MOQ:	10
Price:	USD 7~12
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

vinncom

Model Number

VN-TAP-03560-ON20

Part Number:

VN-TAP-03560-ON20

Operating Frequency ( MHz ):

350-6000

Impedance ( Ohm ):

VSWR:

IM3 (dBc @ 2×43dBm):

-150 / -155/-160

Attenuation (dB):

20 ± 2.2

Highlight:

20db RF Tapper

350-6000MHz RF Tapper

150/155/160dBc RF Tapper

Product Description

20dB N Female Power RF Tapper -150/-155/-160dBc 350-6000MHz

Wide band frequency
Good VSWR at all ports
Low PIM

PartNumber		VN-TAP-03560-OP20
Operating Frequency ( MHz )		350-960/1710-2700/3500-4500/4900-6000
Impedance ( Ohm )		50
Tapper coupling(dB)		20
Coupling loss (dB)		≤0.5
VSWR	350-960MHz	1.25
	1710-2700MHz	1.25
	3400-4500MHz	1.28
	4900-6000MHz	1.28
Coupling Tolerance(dB)	350-960MHz	±2.2
	1710-2700MHz	±2.1
	3400-4500MHz	±2.0
	4900-6000MHz	±2.2
IM3 (dBc @ 2×43dBm)		-150/-155/- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP67
Operating Temperature ( ℃ )		-35~75ºC
Interface		N Female
Dimension (mm)(L×W× H, excl connector)		972525
ROHS Compliance		Yes
Remark		Install Bracket Include

RF Tapper is a device which similar to directional coupler,it is used to split an input signal into two parts for signal tapping out and main signal transmission,RF Tappers have no isolation port ,so this cause RF tapper has no directivity.N Female Tapper,350-6000MHz,6dB Low PIM,Low insertion loss,Low VSWR.
