5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper

Name: 5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-TAP-019096-OPx-160
Price: 9.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: vinncom

Certification: ISO 9000 ROHS

Model Number: VN-TAP-019096-OPx-160

Document: VN-TAP-013096-OPx-160.pdf

Payment & Shipping Terms

Minimum Order Quantity: 10

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          20db RF Tapper, Female RF Tapper, 960MHz RF Tapper


Part Number:	VN-TAP-019096-OPx-160	Operating Frequency ( MHz ):	138-960Mhz
Impedance ( Ohm ):	50	IM3 (dBc @ 2×43dBm):	-160
Power Rating:	300W	Degree Of Protection:	IP65
Interface:	4.3-10 Female

Part Number:	VN-TAP-019096-OPx-160
Operating Frequency ( MHz ):	138-960Mhz
Impedance ( Ohm ):	50
IM3 (dBc @ 2×43dBm):	-160
Power Rating:	300W
Degree Of Protection:	IP65
Interface:	4.3-10 Female

Description

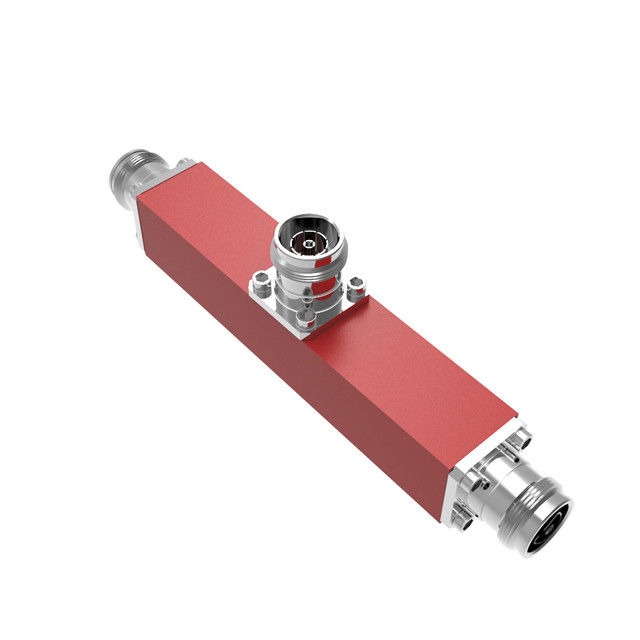

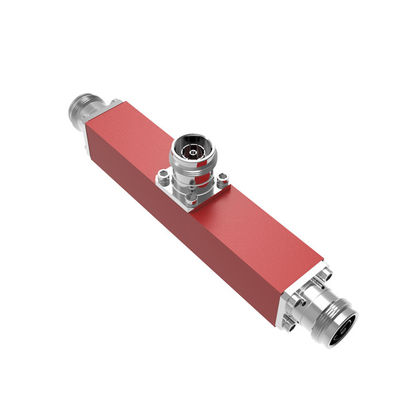

5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper

5-20db 138-960MHz Low PIM 4.3-10 Female RF Tapper

Good returen loss
Low PIM
Good VSWR

RF Tapper is a device which similar to directional coupler,it is used to split an input signal into

two parts for signal tapping out and main signal transmission,

RF Tappers have no isolation port ,so this cause RF tapper has no directivity.

Our RF Tapper has Low PIM and can reach -160.

Vinncom has variety of RF tapper with different frequency range and connector's types.

RF Tapper contains two frequency segments,three kinds of PIM.

Part Number		VN-TAP-019096-OPx-160
Operating Frequency ( MHz )		138-300/300-960
Tapper coupling(dB)		5	6	7	10	12	20
Coupling loss (dB)		≤2.2	≤1.9	≤1.5	≤0.9	≤0.8	≤0.4
VSWR		1.33	1.25	1.25	1.20	1.20	1.20
Coupling Tolerance(dB)	138-300MHz	6±1.0	6.6±0.8	7.8±0.6	10.2±0.6	12.2±0.6	20.2±0.6
	300-960MHz	5.5±0.6	5.5±0.8	6.8±0.6	9.5±0.5	11.5±0.5	19.8±0.6
Impedance ( Ohm )		50
IM3 (dBc @ 2×43dBm)		- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP65
Operating Temperature ( ℃ )		-35~75ºC
Interface		4.3-10 Female
Dimension (mm)(L×W× H, excl connector)		1302525
ROHS Compliance		Yes
Remark		Install Bracket Include
