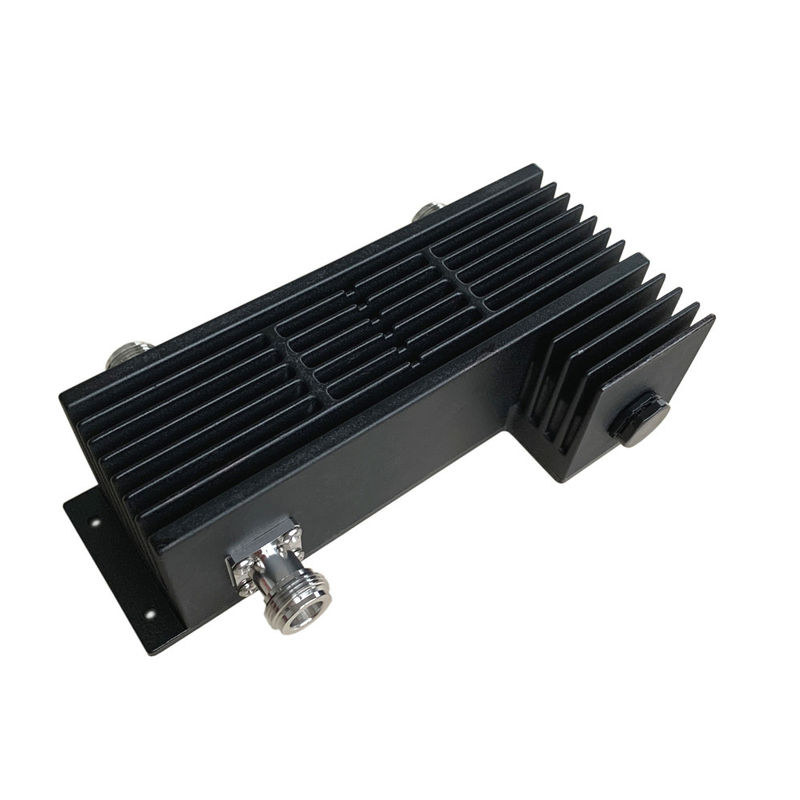

-130dbc 2700MHz Hybrid Power RF Antenna Combiner N Female

MOQ:	5 pcs
Price:	Negotiable
Standard Packaging:	box /carton
Payment Method:	D/A, L/C, D/P, T/T
Supply Capacity:	300pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ROHS ISO9000

Model Number

VN-HC2x1-0738-ON

Frequency:

698-2700MHz 698-3800MHz

Connector:

N Female

Color:

Customized

OEM/ODM:

Acceptable

Low PIM:

-130dbc As Cominer -160dbc As 3dB Coupler

Application:

DAS IBS Public Safety

ROHS:

Compliance

Design:

Wide Band

Highlight:

2700MHz RF Antenna Combiner

130dbc RF Antenna Combiner

200w rf power combiner

Product Description

698-2700/3800MHz N Female Low PIM 3dB Hybrid Coupler Combiner For DAS IBS

Good VSWR at all ports
Good returen loss
Wide band

Part Number	VN-HC2x1-0738-ON
Operating Frequency ( MHz )	700-3800
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3
Insertion Loss (dB)	≤0.8(splitting loss not including)
Isolation (dB)	19
IM3 (dBc @ 2×43dBm)	-130
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	200w
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	145.2X71X46
Net Weight (g)	740
Packing Dimensions (mm,L×W×H)	175X110X50
Packing Carton Size (mm,L×W×H)	570X360X120
ROHS Compliance	Yes

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
