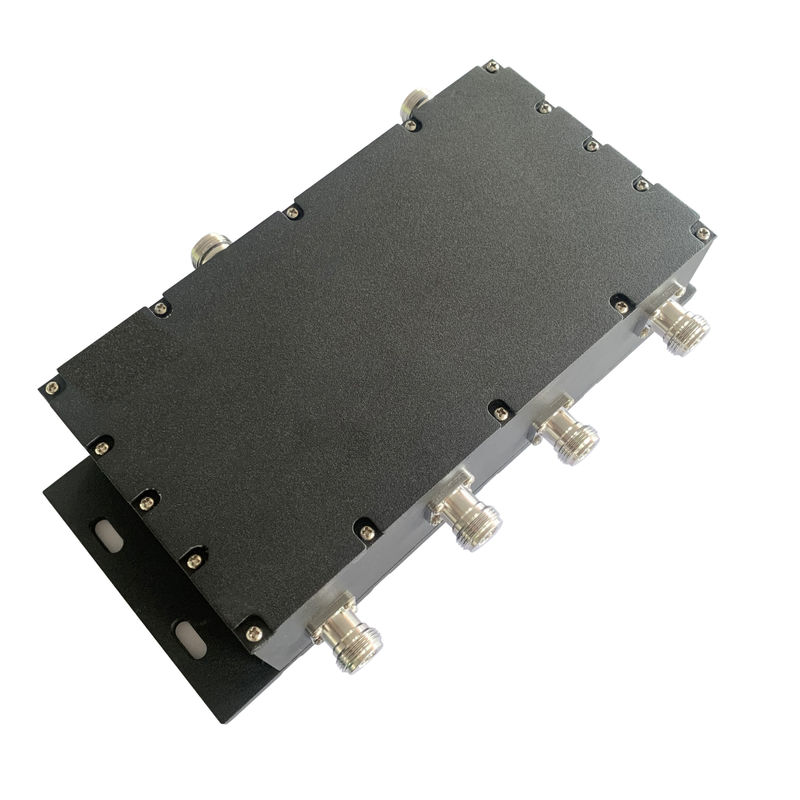

698-3800MHz N Female 4:4 Hybrid Combiner
698-3800MHz N Female 4:4 Hybrid Combiner
698-3800MHz N Female 4:4 Hybrid Combiner
698-3800MHz N Female 4:4 Hybrid Combiner
698-3800MHz N Female 4:4 Hybrid Combiner

698-3800MHz N Female 4:4 Hybrid Combiner

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-HC4x4-0738-ON

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: T/T, Western Union

Supply Ability: 100pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

698MHz waveguide hybrid coupler

,

160dBc waveguide hybrid coupler

,

160dBc hybrid combiner

Operating Frequency ( MHz ):
698-3800
Impedance ( Ohm ):
50
VSWR:
≤1.3
Insertion Loss (dB):
6.2±1
Isolation (dB):
≥20
IM3 (dBc @ 2×43dBm):
-160
Operating Frequency ( MHz ):
698-3800
Impedance ( Ohm ):
50
VSWR:
≤1.3
Insertion Loss (dB):
6.2±1
Isolation (dB):
≥20
IM3 (dBc @ 2×43dBm):
-160
Description
698-3800MHz N Female 4:4 Hybrid Combiner

698-3800MHz N Female 4:4 Hybrid Combiner



  • High isolation
  • Wide band
  • Good PIM up to -160@43dBm*2



        VN-HC4x4-0738-300W-ON-xxx.pdf

Part Number VN-HC4x4-0738-ON
Operating Frequency ( MHz ) 698-3800
Impedance ( Ohm ) 50
VSWR ≤1.3
Insertion Loss (dB) 6.2±1
Isolation (dB) ≥20
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 192 × 103 × 60
Net Weight (g) 2370 ± 20
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes







698-3800MHz N Female 4:4 Hybrid Combiner 0

PIM TEST RECORD

698-3800MHz N Female 4:4 Hybrid Combiner 1

698-3800MHz N Female 4:4 Hybrid Combiner 2

698-3800MHz N Female 4:4 Hybrid Combiner 3

698-3800MHz N Female 4:4 Hybrid Combiner 4
