DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz
  • name

DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton/sponge mat
Delivery Period: 2weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
VINNCOM
Certification
ISO9000
Model Number
VN-COM-1921-OX
Impedance( Ohm ):
50
Return Loss(dB):
≥20
Insertion Loss(dB):
≤0.3
Rejection(dB):
≥50
IM3 (dBc @ 2×43dBm):
-160
Input Average Power(Watt, Max):
150
Highlight:

IP67 rf hybrid combiner

,

4x4 rf hybrid combiner

,

4x4 hybrid combiner

Product Description

1920-2100MHz Combiner 1920-1980MHz/2110-2170MHz DIN Female Duplexer



  • Low PIM
  • Less Insertion Loss
  • High isolation



Operating Frequency( MHz ) 1920-1980 & 2110-2170
Impedance( Ohm ) 50
Return Loss(dB) ≥20
Insertion Loss(dB) ≤0.3
Rejection(dB) ≥50
IM3 (dBc @ 2×43dBm) -160
Input Average Power(Watt, max) 150
Application Indoor/Outdoor(IP67)
DC/AISG By-pass(max. 2.5A)
Lightning Protection 3KA;10/350us pulse
Interface DIN Female
Operating Temperature( ℃) -20 ~ + 55
Relative Humidity 0~95%
Weight(kg) 3.0
Dimensions(mm,L×W×H,excl. Connector & BArNaTckets) 150×169×51

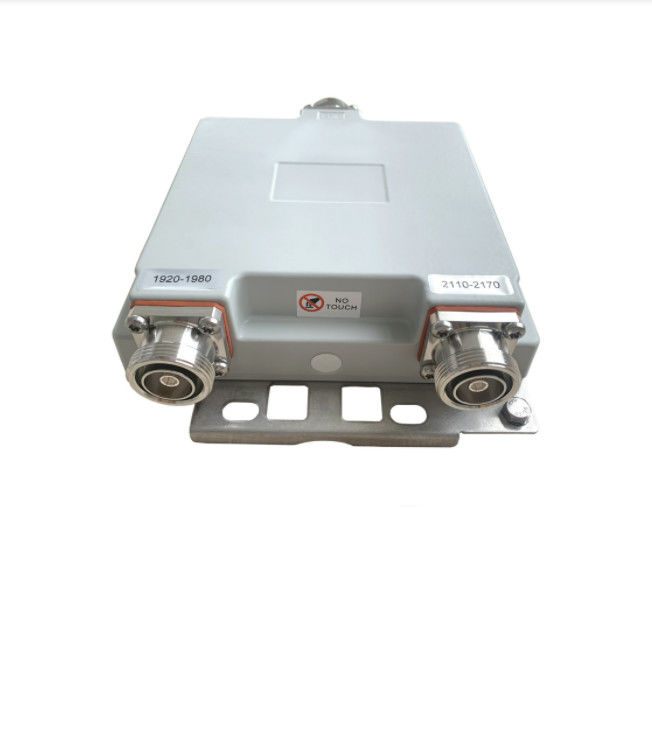

DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz 0DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz 1







DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz 2DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz 3









DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz 4







  • If you are interested, please come and make an inquiry
