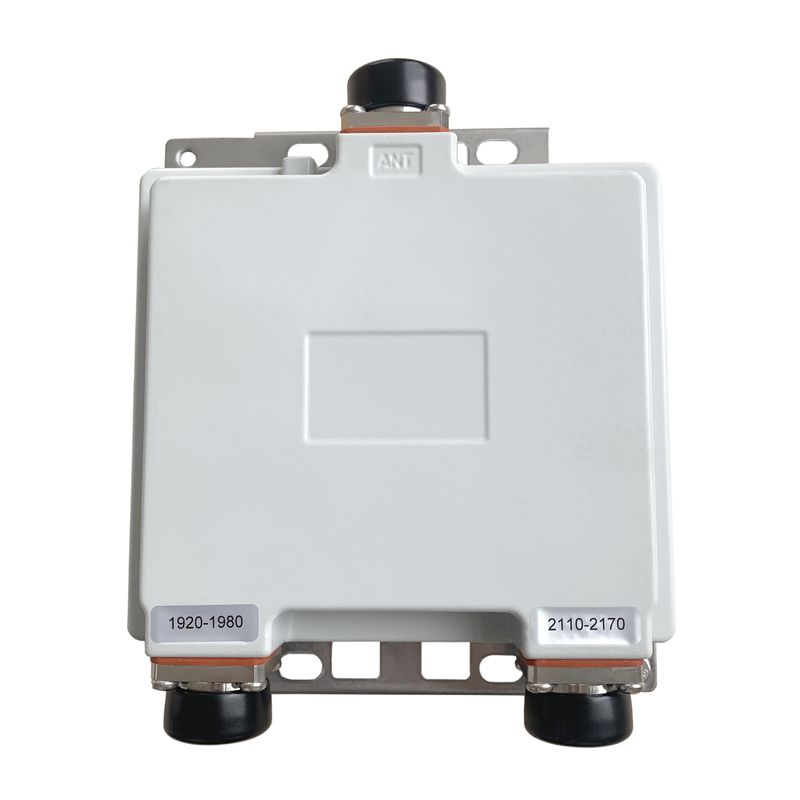

Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz
Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz
Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz
Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz

Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz

Product Details

Place of Origin: CHINA

Brand Name: VINNCOM

Certification: ISO9000

Model Number: VN-COM-1921-OX

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Packaging Details: box/carton/sponge mat

Delivery Time: 2weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

IP67 antenna signal combiner

,

antenna signal combiner Duplexer

,

2100MHz antenna duplexer

Impedance( Ohm ):
50
Return Loss(dB):
≥20
Insertion Loss(dB):
≤0.3
Rejection(dB):
≥50
IM3 (dBc @ 2×43dBm):
-160
Input Average Power(Watt, Max):
150
Impedance( Ohm ):
50
Return Loss(dB):
≥20
Insertion Loss(dB):
≤0.3
Rejection(dB):
≥50
IM3 (dBc @ 2×43dBm):
-160
Input Average Power(Watt, Max):
150
Description
Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz

1920-2100MHz Combiner 1920-1980MHz/2110-2170MHz DIN Female Duplexer



  • Good returen loss
  • Low PIM -160dBc@43dBm*2
  • Portable for installation



Operating Frequency( MHz ) 1920-1980 & 2110-2170
Impedance( Ohm ) 50
Return Loss(dB) ≥20
Insertion Loss(dB) ≤0.3
Rejection(dB) ≥50
IM3 (dBc @ 2×43dBm) -160
Input Average Power(Watt, max) 150
Application Indoor/Outdoor(IP67)
DC/AISG By-pass(max. 2.5A)
Lightning Protection 3KA;10/350us pulse
Interface DIN Female
Operating Temperature( ℃) -20 ~ + 55
Relative Humidity 0~95%
Weight(kg) 3.0
Dimensions(mm,L×W×H,excl. Connector & BArNaTckets) 150×169×51









Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz 0Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz 1







Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz 2Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz 3









Outdoor IP67 Antenna Signal Combiner Duplexer DIN Female 1920-2100MHz 4







  • If you are interested, please come and make an inquiry
