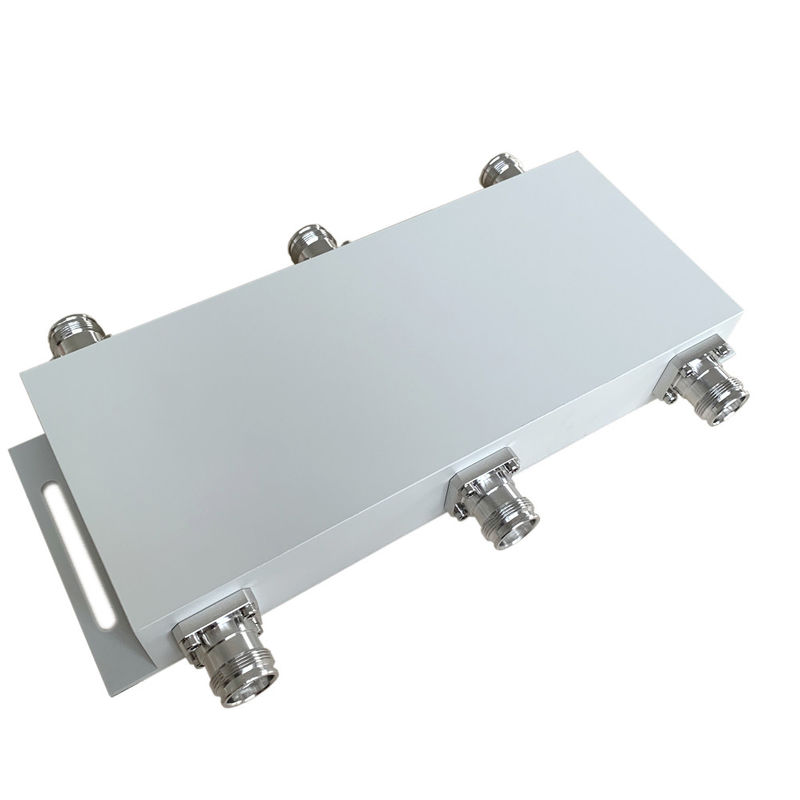

Dielectric 3x3 Hybrid RF Antenna Combiner Customized

Name: Dielectric 3x3 Hybrid RF Antenna Combiner Customized
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC3x3-0738-OP
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC3x3-0738-OP

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 60pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              3x3 RF Antenna Combiner, Customized RF Antenna Combiner, 3x3 wide band combiner


Frequency:	698-2700MHz 698-3800MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-160dbc	Application:	DAS IBS
ROHS:	Compliance	Design:	Wide Band

Frequency:	698-2700MHz 698-3800MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-160dbc
Application:	DAS IBS
ROHS:	Compliance
Design:	Wide Band

Description

Dielectric 3x3 Hybrid RF Antenna Combiner Customized

698-3800MHz 4.3-10 Mini DIN Female Low PIM 3 In 3 Out 3x3 Hybrid Coupler Combiner For DAS IBS

High isolation
Good PIM up to -160@43dBm*2
Good VSWR at all ports

Part Number	VN-HC3x3-0738-OP
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Insertion Loss (dB)	5.1±1
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	241 × 102 × 40
Net Weight (g)	2200 ± 20
Packing Dimensions (mm,L×W×H)	340 × 225 × 85
Packing Carton Size (mm,L×W×H)	475 × 350 × 285
ROHS Compliance	Yes

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,

3in 3out ,and 4in 4out for different usage and customized products also welcomed .
