698-3800MHz N Female 4:4 Hybrid Combiner
  • name
  • name
  • name
  • name

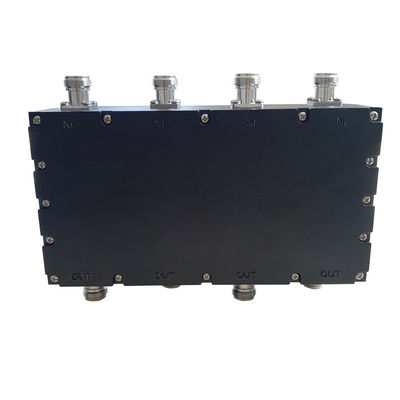

698-3800MHz N Female 4:4 Hybrid Combiner

MOQ: 5pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 60pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC4x4-0738-ON
Frequency:
698-2700MHz 698-3800MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-160dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

4x4 RF Antenna Combiner

,

-160dbc RF Antenna Combiner

,

4x4 das combiner

Product Description

698-3800MHz N Female Low PIM 4 In 4 Out 4x4 Hybrid Coupler Combiner For DAS IBS



  • Good VSWR at all ports
  • High isolation
  • Good PIM up to -160@43dBm*2

                                                                                                                                                       ​VN-HC4x4-0738-300W-ON-xxx.pdf
Part Number VN-HC4x4-0738-ON
Operating Frequency ( MHz ) 698-3800
Impedance ( Ohm ) 50
VSWR ≤1.3
Insertion Loss (dB) 6.2±1
Isolation (dB) ≥20
IM3 (dBc @ 2×43dBm)  -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    192 × 103 × 60
Net Weight (g) 1945 ± 20
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes



698-3800MHz N Female 4:4 Hybrid Combiner 0



The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
