Din Female Broadband 3db Hybrid Combiner Coupler 50Ohm
  • name
  • name
  • name
  • name

Din Female Broadband 3db Hybrid Combiner Coupler 50Ohm

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x1-0738-OD
Frequency:
698-2700MHz 698-3800MHz
Connector:
DIN Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-130dbc As Cominer -160dbc As 3dB Coupler
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

DAS IBS 3db Hybrid Combiner

,

50Ohm 3db hybrid combiner

,

50Ohm broadband hybrid coupler

Product Description

698-2700/3800MHz DIN Female Low PIM 3dB Hybrid Coupler Combiner For DAS IBS



  • Good VSWR at all ports
  • Good returen loss
  • High isolation



Part Number VN-HC2x1-0738-OD
Operating Frequency ( MHz ) 700-3800
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ≤0.8(splitting loss not including)
Isolation (dB) 20
IM3 (dBc @ 2×43dBm) -130
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 200
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    145.2X71X46
Net Weight (g) 890
Packing Dimensions (mm,L×W×H) 175X110X50
Packing Carton Size (mm,L×W×H) 570X360X120
ROHS Compliance Yes

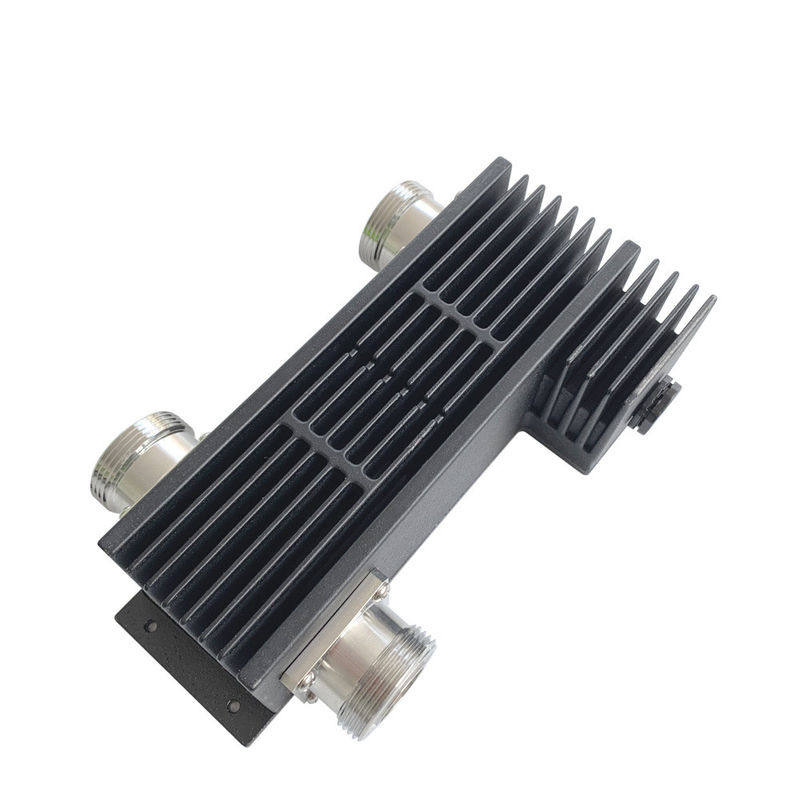

Din Female Broadband 3db Hybrid Combiner Coupler 50Ohm 0



The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
