3db Dielectric Hybrid Coax Das Combiner Black 4000MHz

Name: 3db Dielectric Hybrid Coax Das Combiner Black 4000MHz
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LPHC2x1-0640-ON
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPHC2x1-0640-ON

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 300pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Dielectric 3db das combiner, Coax das combiner, 3db coax combiner


Frequency:	600-4000MHz 550-4000MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-153dbc -163dbc	Application:	DAS IBS Public Safety
ROHS:	Compliance	Design:	Wide Band

Frequency:	600-4000MHz 550-4000MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-153dbc -163dbc
Application:	DAS IBS Public Safety
ROHS:	Compliance
Design:	Wide Band

Description

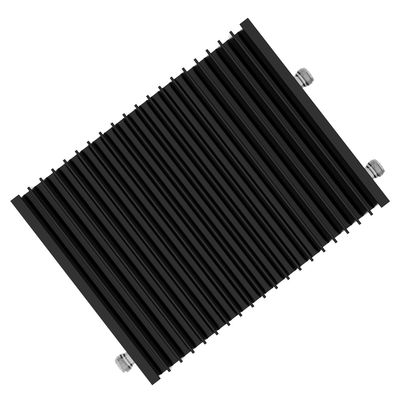

3db Dielectric Hybrid Coax Das Combiner Black 4000MHz

N Female -153dbc -163dbc 600 To 4000MHz Low PIM 2IN 1OUT Hybrid Combiner

Wide band
Good PIM up to -160@43dBm*2
Good returen loss

Part Number	VN-LPHC2x1-0640-ON
Operating Frequency ( MHz )	600-4000
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3
Insertion Loss (dB)	≤0.9(splitting loss not including)
Isolation (dB)	23
IM3 (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	1000
Dimension (mm)(L×W×H, excl connector)	220X170X68
ROHS Compliance	Yes

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
