Vinncom 698-3800MHz Wide Band Signal RF Combiner Din Female -153dbc

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPHC2x1-0738-OP

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 300pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Vinncom rf combiner

,

153dbc rf combiner

,

Vinncom signal combiner

Frequency:
698-3800MHz
Connector:
4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc -163dbc
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Frequency:
698-3800MHz
Connector:
4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc -163dbc
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Description

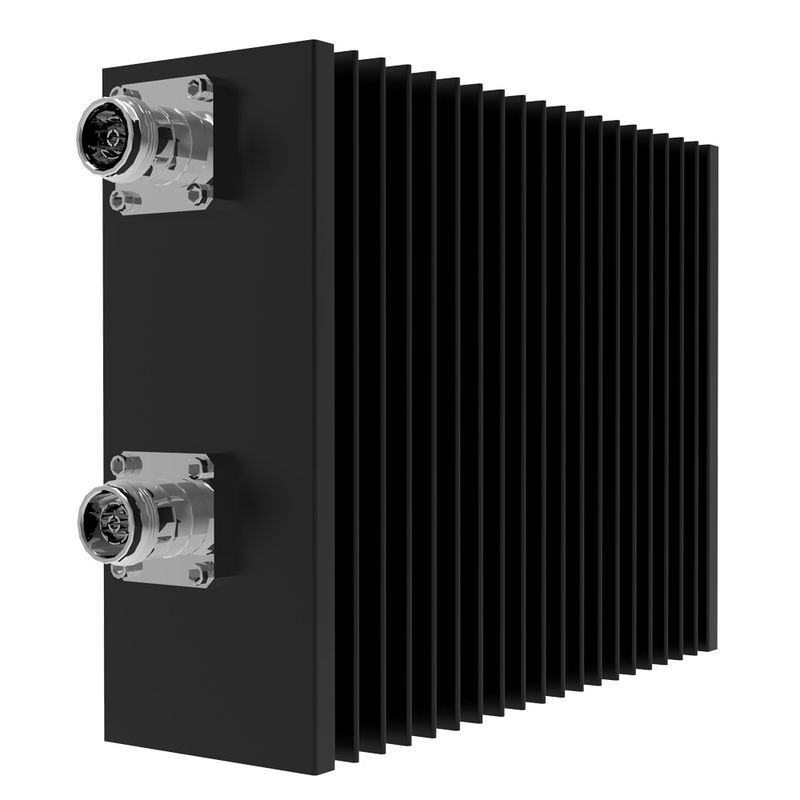

Vinncom 698-3800MHz Wide Band Signal RF Combiner Din Female -153dbc

698-3800MHz 617-3800MHz 4.3-10 Mini Din Female -153dbc -163dbc Low PIM 2IN 1OUT Hybrid Combiner



  • Good PIM up to -160@43dBm*2
  • Good returen loss
  • Good VSWR at all ports



Part Number VN-LPHC2x1-0738-OP
Operating Frequency ( MHz ) 690-3800
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ≤0.8(splitting loss not including)
Isolation (dB) 23
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 1000
   Dimension (mm)(L×W×H, excl connector)    220X170X68
ROHS Compliance Yes



Vinncom 698-3800MHz Wide Band Signal RF Combiner Din Female -153dbc 0



The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
