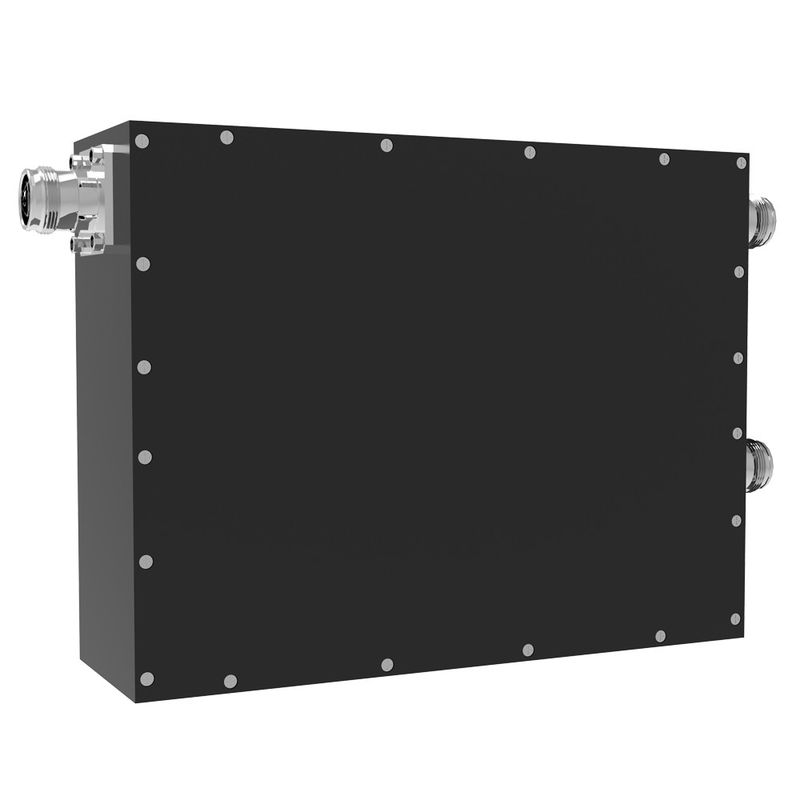

3db Hybrid Multiple RF Antenna Combiner -163dbc OEM
  • name
  • name
  • name
  • name

3db Hybrid Multiple RF Antenna Combiner -163dbc OEM

MOQ: 5pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LPHC2x1-0640-OP
Frequency:
600-4000MHz
Connector:
4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc -163dbc
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

Multiple RF Antenna Combiner

,

163dbc RF Antenna Combiner

,

163dbc multiple antenna combiner

Product Description

550-3800MHz 600-4000MHz 4.3-10 Mini Din Female -153dbc -163dbc Low PIM 2IN 1OUT Hybrid Combiner



  • Wide band
  • Low PIM -160dBc@43dBm*2
  • Portable for installation



Part Number VN-LPHC2x1-0640-OP
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ≤0.9(splitting loss not including)
Isolation (dB) 23
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 1000
Dimension (mm)(L×W×H, excl connector) 220X170X68
ROHS Compliance Yes





3db Hybrid Multiple RF Antenna Combiner -163dbc OEM 0



The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .

Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
