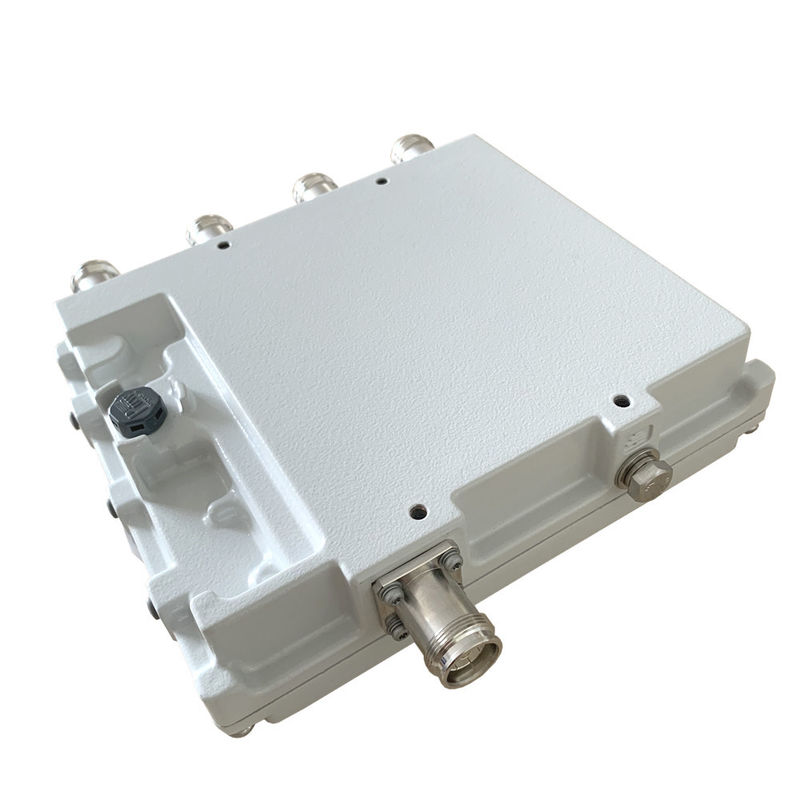

RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation
  • name
  • name
  • name
  • name
  • name
  • name

RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation

MOQ: 5pcs
Price: VN-QC-0827-OPF
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, D/P, D/A, L/C
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO9000 RoHS
Model Number
VN-QC-0827-OPF
VSWR:
1.25
Insertion Loss (dB):
0.2dB；0.4@1710-1880MHz
Isolation:
50dB Minimum
Power Handling:
200W Average (Per Port) 1000W Peak
Inter-modulation (3rd Order):
-160dBc@2*43dBm
Impedance ( Ohm ):
50
Highlight:

IP67 quad band combiner

,

RoHS quad band combiner

,

RoHS female combiner

Product Description

790-960/1710-2170/2500-2690MHz IP67 4.3-10F Female Quad-band Combiner



  • Good returen loss
  • Good PIM up to -160@43dBm*2
  • Good VSWR at all ports



Part Number VN-QC-0827-OPF
Operating Frequency ( MHz )

CH1: 790 to 960MHz CH2: 1710 to 1880MHz

CH3: 1920 to 2170MHz CH4: 2560 to 2690MHz
VSWR 1.25
Insertion Loss (dB) 0.2dB；0.4@1710-1880MHz
Isolation 50dB minimum
Power handling 200W Average (Per Port) 1000W Peak
Inter-modulation (3rd order) -160dBc@2*43dBm
Impedance ( Ohm ) 50
Operating temperature range -10°C to +50°C
Storage temperature range -40°C to +85°C
Relative humidity 5% - 95%

Applications

IP67 (Indoor & Outdoor)
Color Light-Grey
Connectors type 4.3-10 Min-DIN-Female



RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 0
Our Company
RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 1
Our Main RF Components
RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 2
Product Application
RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 3

Test Equipment

RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 4

RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 5

Package And Delivery
RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 6
RoHS 2500-2690MHz IP67 Female Quad Band Combiner 50dB Minimum Isolation 7

FAQ
Q:Could you supply the sample for me to test first?
A:New clients are expected to pay for courier cost and sample cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered,delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.
