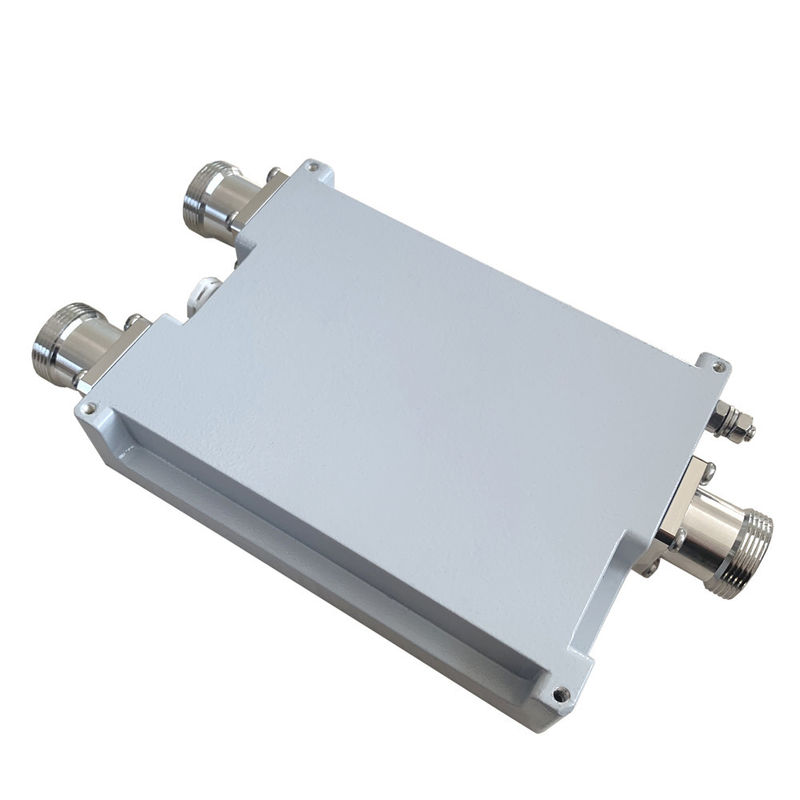

3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female
  • name
  • name
  • name
  • name
  • name
  • name
  • name

3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: 2-4weeks
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS
Model Number
VN-DP-3800-20ODF-V2
Insertion Loss(dB):
≤1.0
Rejection(dB):
≥40
Power Per Port (W):
100
Impedance(Ω):
50
Operating Temperature（℃）:
-20～+65
Relative Humidity:
5~95%
Highlight:

3300MHz RF Antenna Combiner

,

100W RF Antenna Combiner

,

3300MHz diplexer combiner

Product Description

3300MHz-3360/3380-3800MHz 200W Diplexer DIN Female Power 100W



  • Wide band
  • Good returen loss
  • Portable for installation



Item Port1 Port2
Frequencies(MHz) 3300-3360 3380-3800
Bandwidth(MHz) 80 400
Insertion Loss(dB) ≤1.0 ≤1.0
Rejection(dB) ≥40@3400-3800MHz ≥40@3300-3380MHz
Power per port (W) 100
Impedance(Ω) 50
Operating Temperature(℃) -20～+65
Relative Humidity 5~95%
Connectors DIN(Female)
Environment Outdoor IP66







3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female 03300MHz 100W Power RF Antenna Combiner Diplexer DIN Female 1

Our Factory

3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female 2

3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female 3

3300MHz 100W Power RF Antenna Combiner Diplexer DIN Female 4
