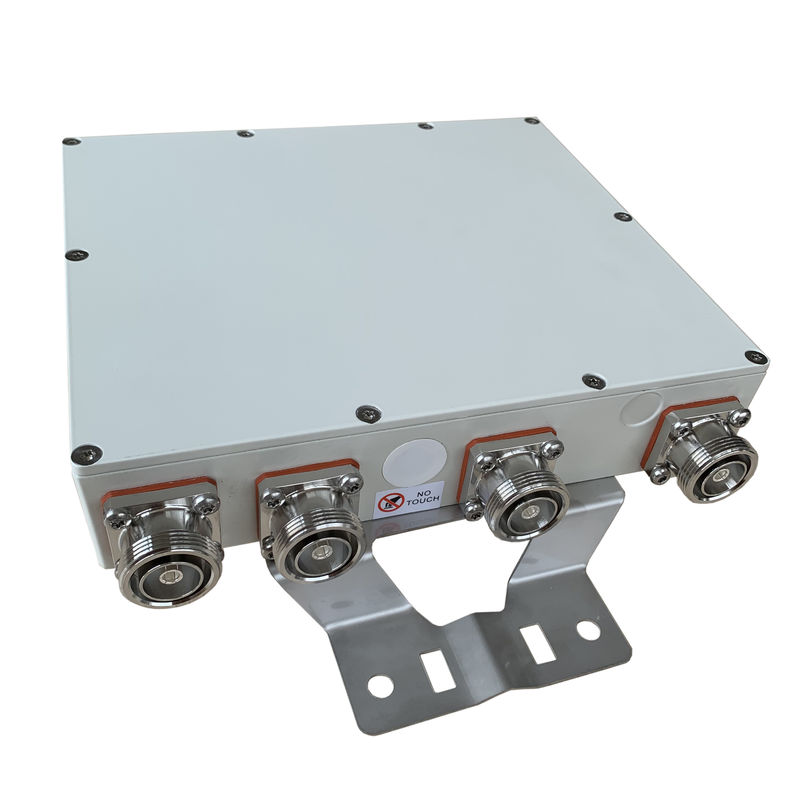

DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc
  • name
  • name
  • name

DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc

MOQ: 5pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, D/A, D/P, L/C
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS
Model Number
VN-CB4X1-0727-OD
Insertion Loss:
698-960≤0.25 DB 1710-1880≤0.4 DB 1920-2170≤0.4 DB 2500-2690≤0.3dB
Return Loss:
≥18dB
Low&High Band Rejection:
≥50dB
Impedance( Ohm ):
50
Input Power:
≤150 W(avg.)
Inter Modulation:
≤-150 DBc With 2tone × 20W
Highlight:

Hybrid PIM RF Antenna Combiner

,

150dBc RF Antenna Combiner

,

150dBc hybrid coupler

Product Description

698-960,1710-1880,1920-2170,2500-2690 MHz DIN Female 4 to 1 combiner PIM-150dBc



  • Good returen loss
  • Good VSWR at all ports
  • Portable for installation



Part Number VN-CB4X1-0727-OD
Operating Frequency ( MHz )

698-960,1710-1880,

1920-2170,2500-2690 MHz
Insertion loss

     698-960≤0.25 dB 1710-1880≤0.4 dB

    1920-2170≤0.4 dB 2500-2690≤0.3dB
Return loss ≥18dB
Low&High Band Rejection ≥50dB
Impedance( Ohm ) 50
Input power ≤150 W(avg.)
Inter modulation ≤-150 dBc with 2tone × 20W
DC/AISG N/A
Lightning protection 3KA；10/350us pulse

Relative humidity

 0~95%

Application

 Outdoor (IP67)
Interface DIN(Female)
Operating Temperature( ℃ ) -20°C to +55°C
Weight 4.0kg
   Dimensions(mm,L×W×H,excluding connector)

208*237.8*47.5 mm(One unit；

without connector and mounting brackets)




DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc 0DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc 1


Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
