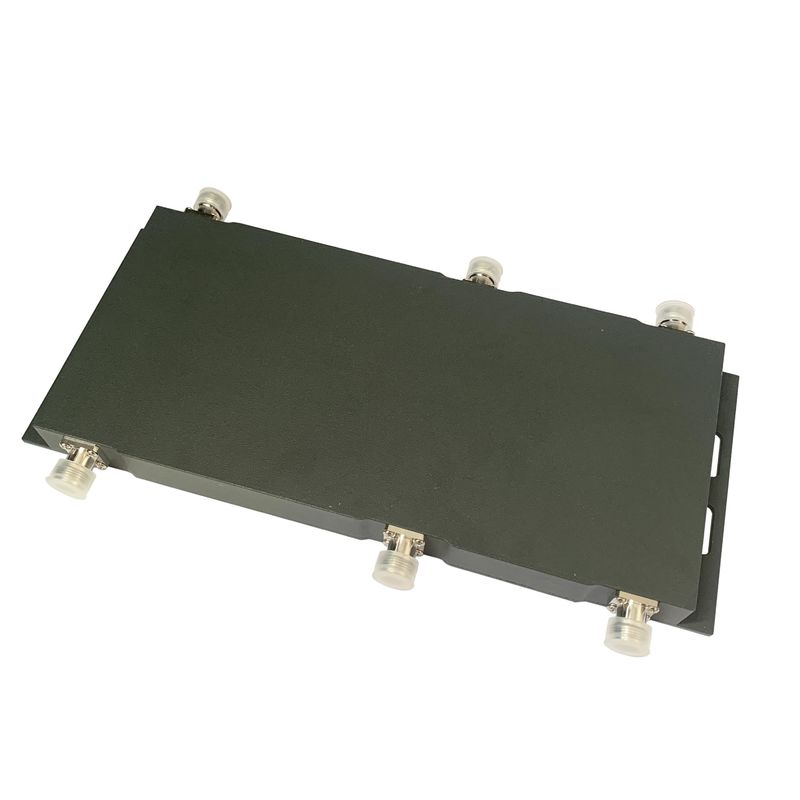

300-700MHz Hybrid Coupler / 3:3 Combiner

Name: 300-700MHz Hybrid Coupler / 3:3 Combiner
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-HC3x3-0307-300W-ON
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-HC3x3-0307-300W-ON

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      700MHz RF hybrid combiner, 150dBc RF hybrid combiner, 4x4 hybrid combiner


Operating Frequency ( MHz ):	300-700	Impedance ( Ohm ):	50
VSWR:	1.25	Insertion Loss (dB):	5.1±1.0
Isolation (dB):	≥25	IM3 (dBc @ 2×43dBm):	-150

Operating Frequency ( MHz ):	300-700
Impedance ( Ohm ):	50
VSWR:	1.25
Insertion Loss (dB):	5.1±1.0
Isolation (dB):	≥25
IM3 (dBc @ 2×43dBm):	-150

Description

300-700MHz Hybrid Coupler / 3:3 Combiner

300-700MHz PIM-150dBc N Female 3in 3out Hybrid Combiner / 3:3 Combiner

Good VSWR at all ports
High isolation
Portable for installation

VN-HC3x3-0307-300W-ON.pdf

Part Number	VN-HC3x3-0307-OP
Operating Frequency ( MHz )	300-700
Impedance ( Ohm )	50
VSWR	≤1.25
Insertion Loss (dB)	5.1±1.0
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	285.7 × 133.1×31
