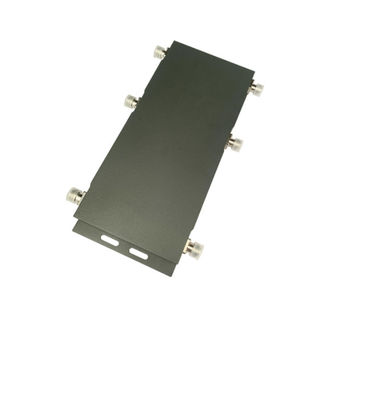

300-700MHz Hybrid Coupler / 3:3 Combiner
  • name

300-700MHz Hybrid Coupler / 3:3 Combiner

MOQ: 5pcs
Price: negotiation
Delivery Period: 2-4weeks
Payment Method: T/T, Western Union
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-HC3x3-0307-ON
Operating Frequency ( MHz ):
300-700
Impedance ( Ohm ):
50
VSWR:
1.25
Insertion Loss (dB):
5.1±1.0
Isolation (dB):
≥25
IM3 (dBc @ 2×43dBm):
-150
Highlight:

700MHz rf hybrid coupler

,

N Female rf hybrid coupler

,

700MHz hybrid coupler rf

Product Description

300-700MHz Hybrid Coupler / 3:3 Combiner



  • High isolation
  • Good VSWR at all ports
  • Good returen loss



                                         VN-HC3x3-0307-300W-ON.pdf

Part Number VN-HC3x3-0307-OP
Operating Frequency ( MHz ) 300-700
Impedance ( Ohm ) 50
VSWR ≤1.25
Insertion Loss (dB) 5.1±1.0
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm) -150
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
   Dimension (mm)(L×W×H, excl connector)    285.7 × 133.1×31
ROHS Compliance Yes
Revision R1



300-700MHz Hybrid Coupler / 3:3 Combiner 0


Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
