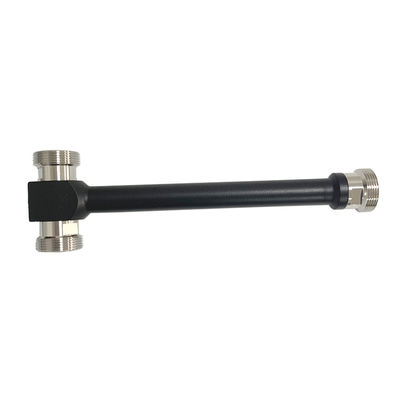

698-2700/3800MHz 2 Way DIN Female Power Splitter

Name: 698-2700/3800MHz 2 Way DIN Female Power Splitter
Brand: Vinncom
SKU: VN-PS-0727-OD2-R/VN-PS-0738-OD2-R
Rating: 4.9 (130 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-0727-OD2-R/VN-PS-0738-OD2-R

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/P, D/A, L/C, T/T

Supply Ability: 2000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            2700MHz Power Divider, Low PIM-163dBC Power Divider, Two Way Power Divider


Color:	Can Be Customized	Frequency:	698-2700MHz/3800MHz
Connector:	DIN Female	Material:	Alum
Design:	Round Outline

Color:	Can Be Customized
Frequency:	698-2700MHz/3800MHz
Connector:	DIN Female
Material:	Alum
Design:	Round Outline

Description

698-2700/3800MHz 2 Way DIN Female Power Splitter

698-2700/3800MHz DIN Female 2 Way Low Cost Cavity Reactive Splitter PIM -160/163dBC For DAS IBS

Wide band frequency
Good VSWR
Low PIM

VN-PS-0727-OD2-R-xxx.pdf VN-PS-0738-OD2-R-xxx.pdf

Part Number	VN-PS-0727-OD2-R/ VN-PS-0738-OD2-R
Operating Frequency ( MHz )	698-2700/3800
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤3.3
IM3 (dBc @ 2×43dBm)	-140 / -150 / -155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	Din Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	260 ± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 35
Packing Carton Size (mm,L×W×H)	500 × 420 × 160
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
