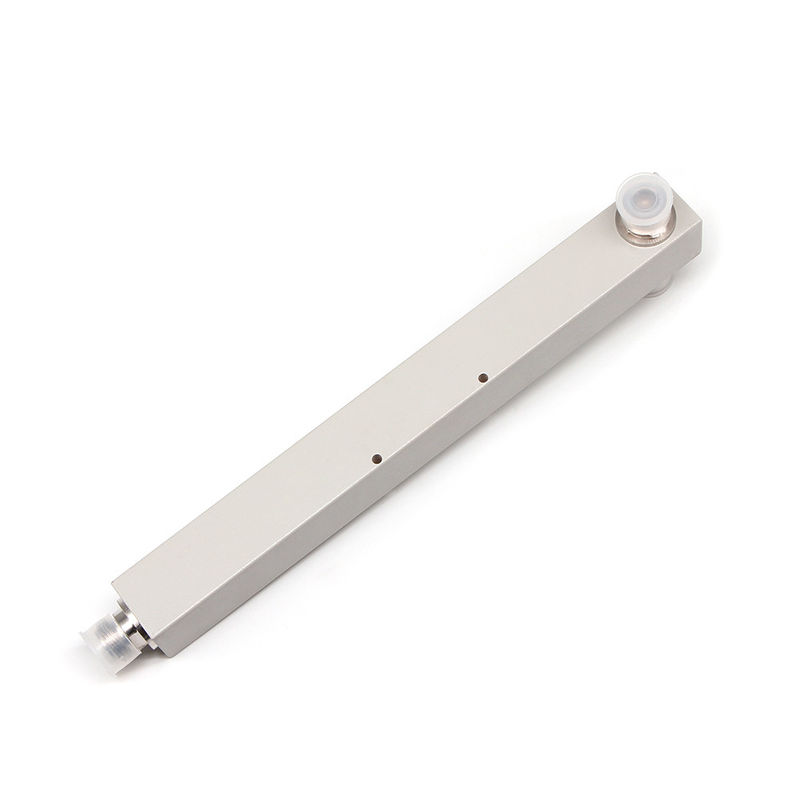

698-4000MHz 2 Way N Female Power Splitter

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-0740-ON2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price
Contact Now
Specifications
Highlight:
Frequency:
698-4000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Frequency:
698-4000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Description
698-4000MHz 2 Way N Female Power Splitter

698-4000MHz N Female Low PIM -165dbc 2 Way Reactive Power Splitter For DAS IBS



  • High power handling splitters
  • Wide band frequency
  • Good VSWR at all ports



   VN-PS-0740-ON2-R-150.pdf

Part Number VN-PS-0740-ON2
Operating Frequency ( MHz ) 700-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.3
IM3 (dBc @ 2×43dBm)   -155/ -165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    218 × 25 × 25
Net Weight (g) 375 ± 20
Packing Dimensions (mm,L×W×H) 280 × 80 × 35
Packing Carton Size (mm,L×W×H) 580 × 420 × 160
ROHS Compliance Yes



698-4000MHz 2 Way N Female Power Splitter 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
