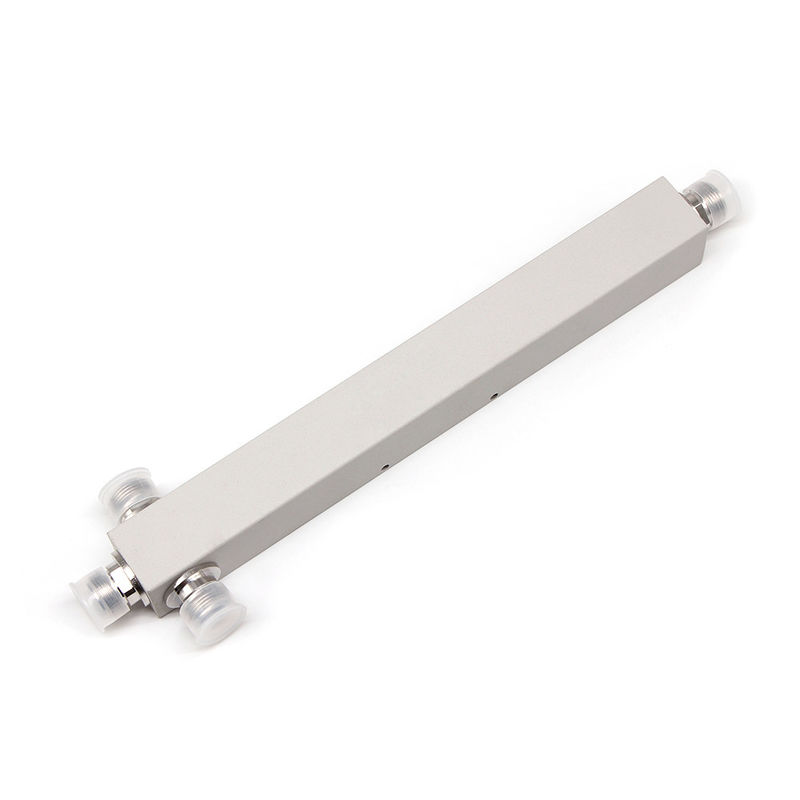

698-4000MHz 3 Way N Female Power Splitter

Name: 698-4000MHz 3 Way N Female Power Splitter
Brand: Vinncom
SKU: VN-PS-0740-ON3
Rating: 4.6 (114 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-0740-ON3

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Frequency:	550-3800MHz 550-4000MHz 698-4000MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc	Application:	DAS IBS
ROHS:	Compliance

Frequency:	550-3800MHz 550-4000MHz 698-4000MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS
ROHS:	Compliance

Description

698-4000MHz 3 Way N Female Power Splitter

550/698-4000MHz N Female Low PIM -165dbc 3 Way Reactive Power Splitter For DAS IBS

Wide band frequency
Low PIM
Good VSWR

VN-PS-0740-ON3-R-150.pdf

Part Number	VN-PS-0740-ON3
Operating Frequency ( MHz )	700-4000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤5.1
IM3 (dBc @ 2×43dBm)	-155/ -165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	218 × 25 × 25
Net Weight (g)	405± 20
Packing Dimensions (mm,L×W×H)	280 × 80 × 35
Packing Carton Size (mm,L×W×H)	580 × 420 × 160
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
