698-6000MHz 2 Way 4.3-10 Female Power Splitter

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-0760-OP2-S

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Get Best Price
Contact Now
Specifications
Highlight:

2 Way rf aerial splitter

,

DAS IBS rf aerial splitter

,

2 Way coaxial signal combiner

Frequency:
698-6000MHz
Connector:
Mini DIN 4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Mini Design
Frequency:
698-6000MHz
Connector:
Mini DIN 4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Mini Design
Description
698-6000MHz 2 Way 4.3-10 Female Power Splitter

 698-6000MHz N Female Mini DIN 4.3-10 Female Mini Design Low PIM -165dbc 2 Way Reactive Power Splitter For DAS IBS



  • Low PIM
  • Good VSWR
  • Wide band frequency



   VN-PS-05560-OP2-xxx.pdf

Part Number VN-PS-0760-OP2-S
Operating Frequency ( MHz ) 698-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.5
IM3 (dBc @ 2×43dBm) -155 / -165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
   Dimension (mm)(L×W×H, excl connector)    143 × 25 × 25
Net Weight (g) 185 ± 20
Packing Dimensions (mm,L×W×H) 190 × 80 × 45
Packing Carton Size (mm,L×W×H) 430 × 400 × 240
ROHS Compliance Yes

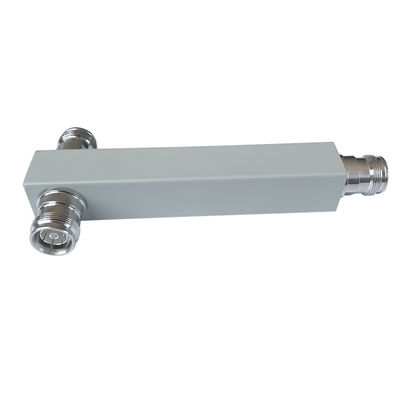

698-6000MHz 2 Way 4.3-10 Female Power Splitter 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
