-165dbc Broadband Coax Reactive RF Antenna Splitter 1000MHz

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-0760-ON2-R

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

coax RF Antenna Splitter

,

1000MHz RF Antenna Splitter

,

Broadband coax splitter for antenna

Frequency:
698-6000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Mini Design
Cost:
Low Cost
Frequency:
698-6000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Mini Design
Cost:
Low Cost
Description
-165dbc Broadband Coax Reactive RF Antenna Splitter 1000MHz

 698-6000MHz N Female Mini Design Low PIM -165dbc 2 Way Reactive Round Power Splitter For DAS IBS



  • High power handling splitters
  • Wide band frequency
  • Good VSWR at all ports



Part Number VN-PS-0760-ON2-R
Operating Frequency ( MHz ) 698-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.5
IM3 (dBc @ 2×43dBm) -155 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    143 × 25 × 25
Net Weight (g)
Packing Dimensions (mm,L×W×H) 190 × 80 × 45
Packing Carton Size (mm,L×W×H) 430 × 400 × 240
ROHS Compliance Yes

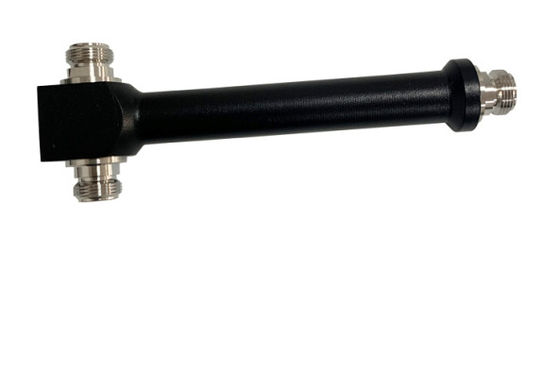

-165dbc Broadband Coax Reactive RF Antenna Splitter 1000MHz 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
