OEM Powerpass RF Antenna Splitter For Antenna Distribution System
  • name
  • name
  • name
  • name

OEM Powerpass RF Antenna Splitter For Antenna Distribution System

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PS-0760-ON4-R
Frequency:
698-6000MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Mini Design
Cost:
Low Cost
Highlight:

Powerpass RF Antenna Splitter

,

Antenna Distribution RF Antenna Splitter

,

OEM powerpass splitter

Product Description

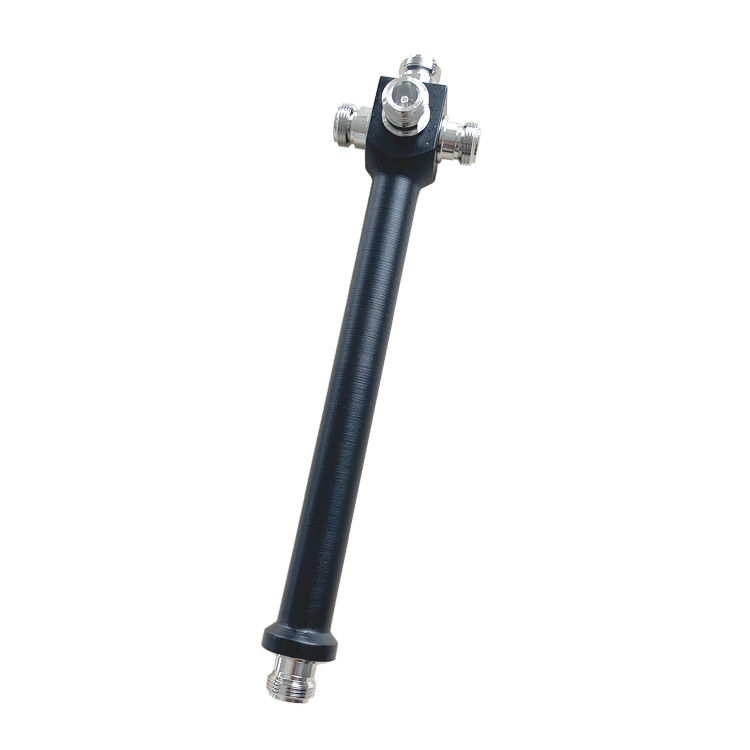

 698-6000MHz N Female Mini Design Low PIM -165dbc 4 Way Reactive Round Power Splitter For DAS IBS



  • Good VSWR at all ports
  • Wide band frequency
  • High power handling splitters



Part Number VN-PS-0760-ON4-R
Operating Frequency ( MHz ) 698-6000
Impedance ( Ohm ) 50
VSWR ≤1.30
Split Loss (dB) ≤6.9
IM3 (dBc @ 2×43dBm) -155 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    200 × 25 × 25
Net Weight (g)
Packing Dimensions (mm,L×W×H) 240 × 80 × 50
Packing Carton Size (mm,L×W×H) 500 × 420 × 160
ROHS Compliance Yes









OEM Powerpass RF Antenna Splitter For Antenna Distribution System 0



Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
