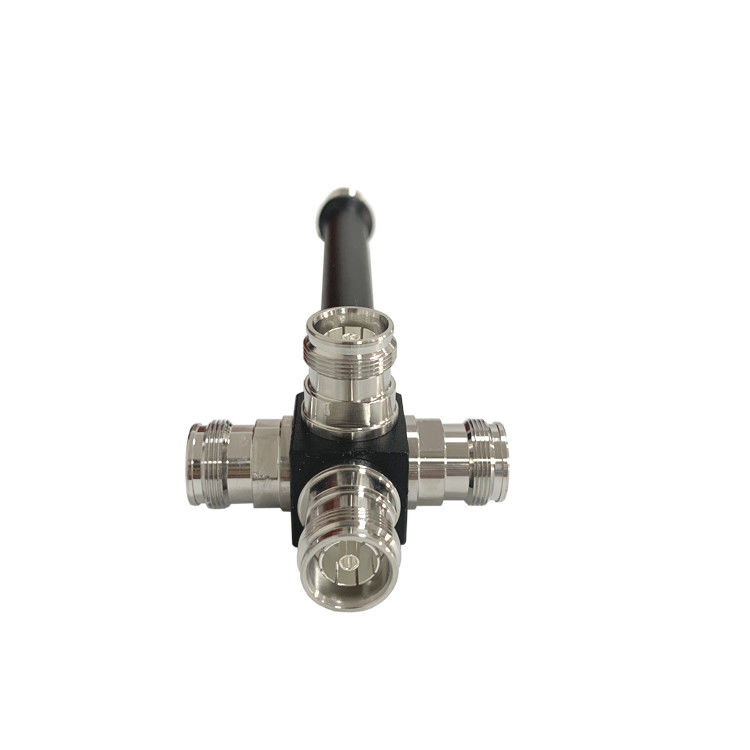

Mini DIN Female 4 Way antenna Coax Splitter Power Pass 6000MHz -165dbc

Name: Mini DIN Female 4 Way antenna Coax Splitter Power Pass 6000MHz -165dbc
Brand: Vinncom
SKU: VN-PS-0760-OP4-R
Rating: 4.6 (154 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-0760-OP4-R

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Antenna coax splitter power pass, -165dbc coax splitter power pass, Antenna 4 Way Power Splitter


Frequency:	698-6000MHz	Connector:	Mini DIN 4.3-10 Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc	Application:	DAS IBS
ROHS:	Compliance	Design:	Mini Design
Cost:	Low Cost Round

Frequency:	698-6000MHz
Connector:	Mini DIN 4.3-10 Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS
ROHS:	Compliance
Design:	Mini Design
Cost:	Low Cost Round

Description

Mini DIN Female 4 Way antenna Coax Splitter Power Pass 6000MHz -165dbc

698-6000MHz N Female Mini DIN 4.3-10 Female Mini Design Low PIM -165dbc Round 4 Way Reactive Power Splitter For DAS IBS

Wide band frequency
Good VSWR at all ports
Low PIM

Part Number	VN-PS-0760-OP4-R
Operating Frequency ( MHz )	698-6000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤6.9
IM3 (dBc @ 2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	280 ± 20
Packing Dimensions (mm,L×W×H)	280 × 80 × 50
Packing Carton Size (mm,L×W×H)	580 × 420 × 160
ROHS Compliance	Yes
Revision	R1

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
