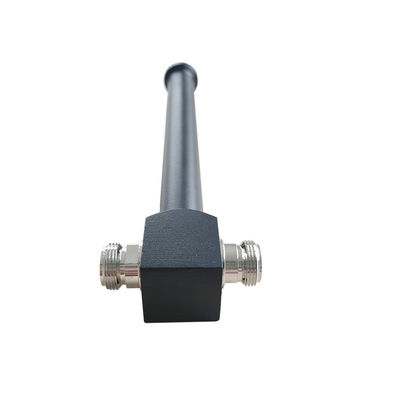

1200W -153dbc DAS IBS RF DC Power Passing Splitter 2 Way N Female

Name: 1200W -153dbc DAS IBS RF DC Power Passing Splitter 2 Way N Female
Brand: Vinncom
SKU: VN-PS-03543-ON2-R
Rating: 4.9 (174 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-03543-ON2-R

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            1200w dc power passing splitter, DAS dc power passing splitter, IBS rf 2 way splitter


Frequency:	350-430MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc	Application:	DAS IBS
ROHS:	Compliance	Design:	Mini Design
Cost:	Low Cost

Frequency:	350-430MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS
ROHS:	Compliance
Design:	Mini Design
Cost:	Low Cost

Description

1200W -153dbc DAS IBS RF DC Power Passing Splitter 2 Way N Female

350-430MHz N Female 2 Way Reactive Round Design Power Splitter For Public Safety DAS IBS

Low PIM
High power handling splitters
Good VSWR

Part Number	VN-PS-035043-ON2-R
Operating Frequency ( MHz )	350-430
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤3.3
IM3 (dBc @ 2×43dBm)	-140 / -150 / -155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	150 ± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 35
Packing Carton Size (mm,L×W×H)	500 × 420 × 160
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
