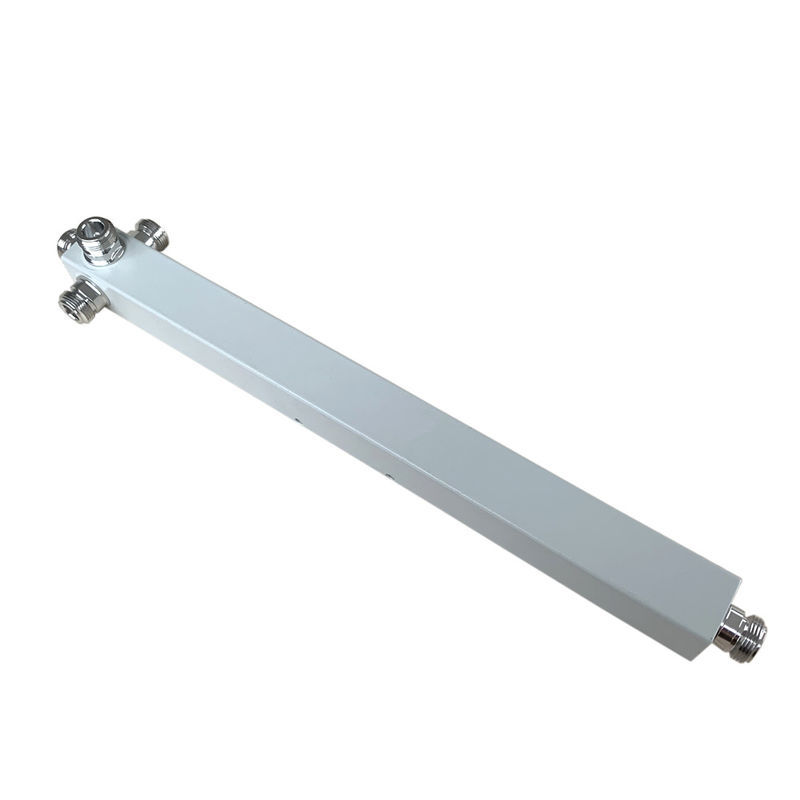

550-6000MHz 4 Way N Female Power Splitter

Name: 550-6000MHz 4 Way N Female Power Splitter
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PS-05560-ON4
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-05560-ON4

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              4 Way RF Antenna Splitter, Waterproof RF Antenna Splitter, -165dbc 4 way power divider


Frequency:	550-6000MHz 600-6000MHz	Connector:	N Female
Color:	Customized	OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc	Application:	DAS IBS
ROHS:	Compliance	Design:	Wide Band

Frequency:	550-6000MHz 600-6000MHz
Connector:	N Female
Color:	Customized
OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS
ROHS:	Compliance
Design:	Wide Band

Description

550-6000MHz 4 Way N Female Power Splitter

550-6000MHz N Female Low PIM -165dbc 4 Way Reactive Power Splitter Divider For DAS IBS

Wide band frequency
High power handling splitters
Good VSWR at all ports

VN-PS-05560-ON4-xxx.pdf

Part Number	VN-PS-05560-ON4
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤6.7(smooth on test)
IM3 (dBc @ 2×43dBm)	-155/ -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	262 × 25 × 25
Net Weight (g)	460 ± 20
Packing Dimensions (mm,L×W×H)	320 × 80 × 60
Packing Carton Size (mm,L×W×H)	655 × 410 × 140
ROHS Compliance	Yes
