550-6000MHz 3 Way 4.3-10 Female Power Splitter

Name: 550-6000MHz 3 Way 4.3-10 Female Power Splitter
Brand: Vinncom
SKU: VN-PS-05560-OP3
Rating: 5 (183 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PS-05560-OP3

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Female antenna cable splitter, Coaxial antenna cable splitter, 550MHz 3 way coaxial splitter


Frequency:	550-6000MHz 600-6000MHz	Connector:	4.3-10 Female Mini DIN
OEM/ODM:	Acceptable	Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS	ROHS:	Compliance

Frequency:	550-6000MHz 600-6000MHz
Connector:	4.3-10 Female Mini DIN
OEM/ODM:	Acceptable
Low PIM:	-153dbc,-160dbc,-163dbc,-165dbc
Application:	DAS IBS
ROHS:	Compliance

Description

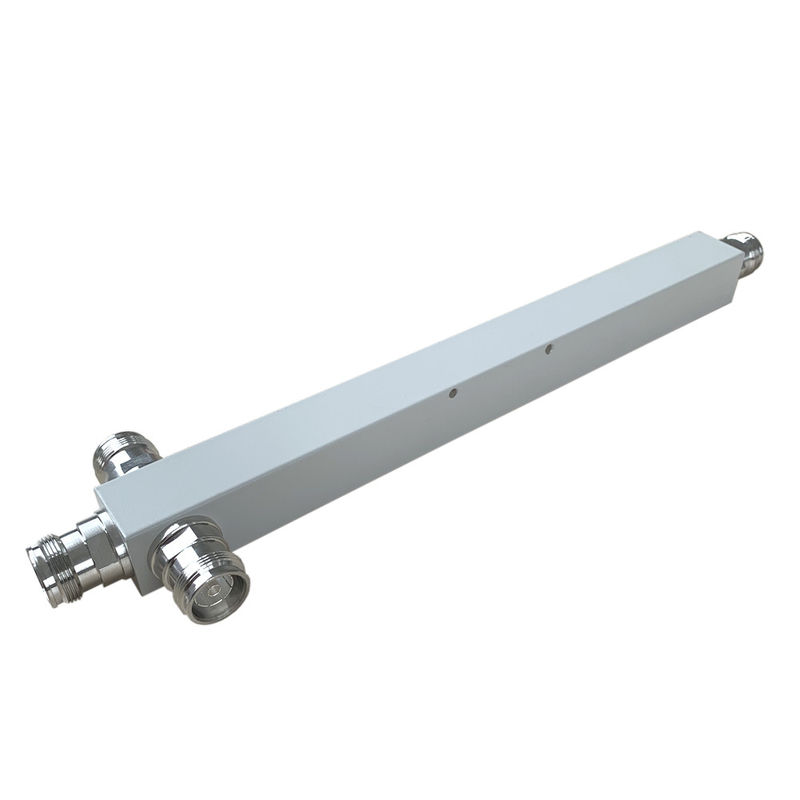

550-6000MHz 3 Way 4.3-10 Female Power Splitter

550 / 600-6000MHz 4.3-10 Female Mini Din Low PIM -165dbc 3 Way Reactive Power Splitter Divider For DAS IBS

Good VSWR at all ports
Wide band frequency
Low PIM

VN-PS-05560-OP3-xxx.pdf

Part Number	VN-PS-05560-OP3
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤5.8( smooth on test)
IM3 (dBc @ 2×43dBm)	-155/ -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	269.2× 25 × 25
Net Weight (g)	515± 20
Packing Dimensions (mm,L×W×H)	320 × 80 × 60
Packing Carton Size (mm,L×W×H)	655 × 410 × 140
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
