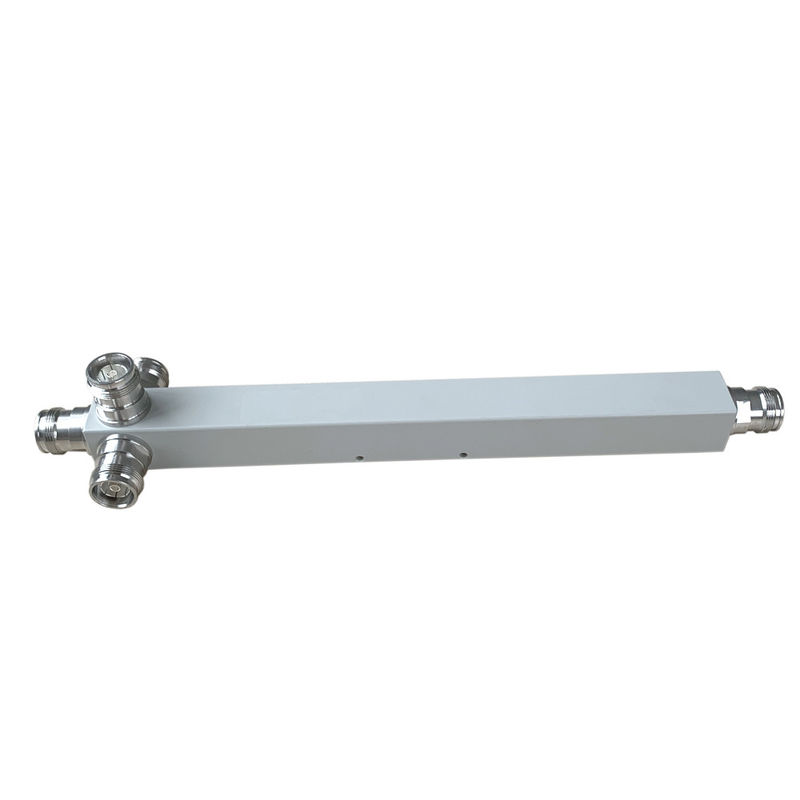

550-6000MHz 4 Way 4.3-10 Female Power Splitter
  • name
  • name
  • name
  • name

550-6000MHz 4 Way 4.3-10 Female Power Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PS-05560-OP4
Frequency:
550-6000MHz 600-6000MHz
Connector:
4.3-10 Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc,-163dbc,-165dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

Reactive RF Antenna Splitter

,

600MHz RF Antenna Splitter

,

Reactive 2 way rf splitter

Product Description

550 / 600-6000MHz 4.3-10 Female Mini Din Low PIM -165dbc 4 Way Reactive Power Splitter Divider For DAS IBS



  • Wide band frequency
  • Low PIM
  • High power handling splitters



   VN-PS-05560-OP4-xxx.pdf

Part Number VN-PS-05560-OP4
Operating Frequency ( MHz ) 550-6000
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤6.7(smooth on test)
IM3 (dBc @ 2×43dBm) -155/ -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
   Dimension (mm)(L×W×H, excl connector)    262 × 25 × 25
Net Weight (g) 540 ± 20
Packing Dimensions (mm,L×W×H) 320 × 80 × 60
Packing Carton Size (mm,L×W×H) 655 × 410 × 140
ROHS Compliance Yes







550-6000MHz 4 Way 4.3-10 Female Power Splitter 0


Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
