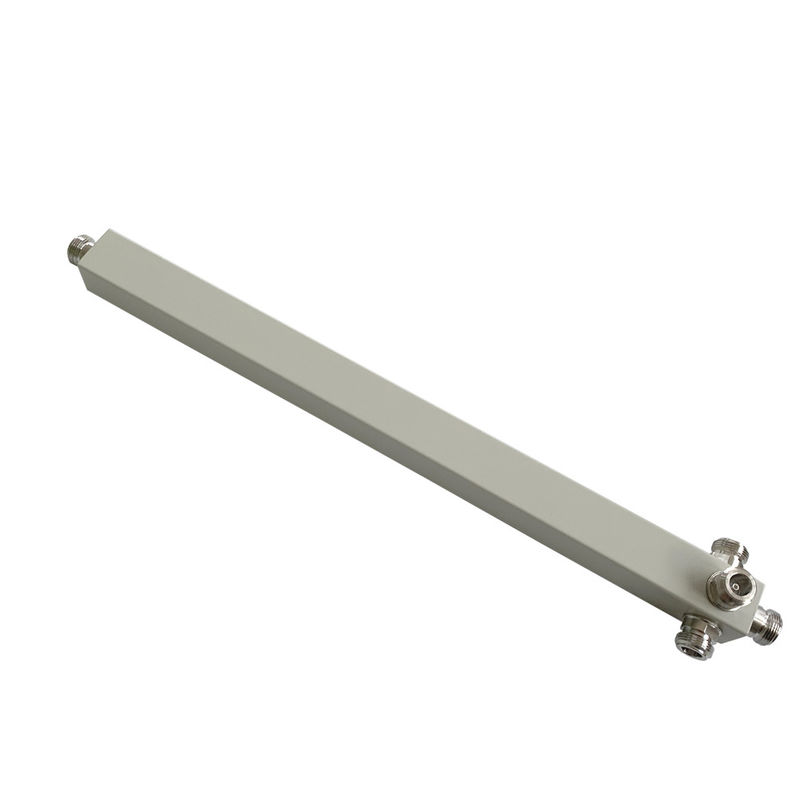

350/380-3800MHz 4 Way N Female Power Splitter

Name: 350/380-3800MHz 4 Way N Female Power Splitter
Brand: Vinncom
SKU: VN-PS-03538-ON4
Rating: 5 (164 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-03538-ON4

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/P, D/A, L/C, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    OEM 4 way antenna splitter, 8GHZ 4 way antenna splitter, OEM 4 way Signal splitter


Color:	Can Be Customized	Frequency:	350-3800MHz 380-3800MHz
Connector:	N Female	Material:	Alum
Design:	Small Size	Pim:	-165dbc@testing 450~3500

Color:	Can Be Customized
Frequency:	350-3800MHz 380-3800MHz
Connector:	N Female
Material:	Alum
Design:	Small Size
Pim:	-165dbc@testing 450~3500

Description

350/380-3800MHz 4 Way N Female Power Splitter

350-3800MHz 380-3800MHz N Female 4 Way IP65 Low Pim -163dBc Reactive Power Splitter For DAS IBS

Good VSWR at all ports
Low PIM
High power handling splitters

VN-PS-03438-ON4-xxx.pdf

Part Number	VN-PS-03538-ON4
Operating Frequency ( MHz )	350/380-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤7.7
IM3 (dBc @ 2×43dBm)	-155/ -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	338 × 25 × 25
Net Weight (g)	570 ± 20
Packing Dimensions (mm,L×W×H)	390X80X50
Packing Carton Size (mm,L×W×H)	500X395X270
ROHS Compliance	Yes

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3^rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
